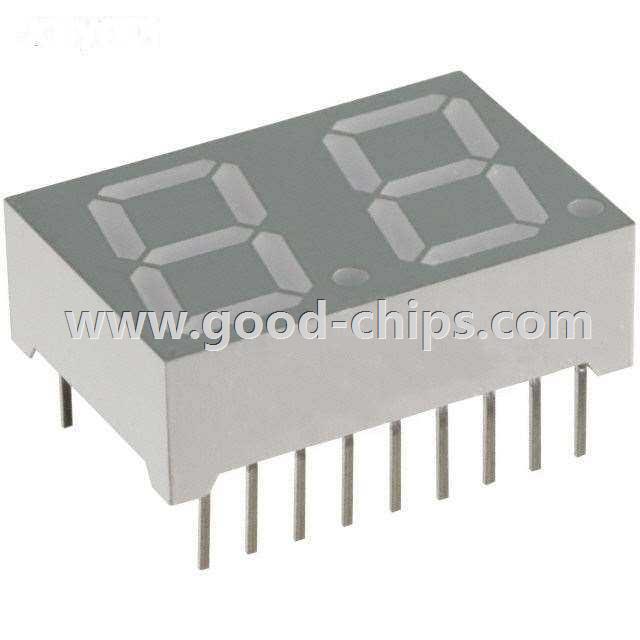

| Manufacturer Part Number: | LTD-5523AB |
|---|---|
| Manufacturer: | Lite-On Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 9898 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Blue 7-Segment 2 Character Common Cathode 3.8V 20mA 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) 18-DIP (0.600", 15.24mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTD-5523AB Datasheet |
| Internal Part Number | 898-LTD-5523AB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 7-Segment Dual Digit Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lite-On Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 0.673" H x 0.984" W x 0.315" D (17.10mm x 25.00mm x 8.00mm) | |
| Digit/Alpha Size | 0.56" (14.22mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Cathode | |
| Color | Blue | |
| Voltage - Forward (Vf) (Typ) | 3.8V | |
| Current - Test | 20mA | |
| Millicandela Rating | 4.3mcd | |
| Wavelength - Peak | 428nm | |
| Power Dissipation (Max) | 95mW | |
| Package / Case | 18-DIP (0.600", 15.24mm) | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTD-5523AB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTD-5523AB is in stock for immediate shipping now. We are the distributor of Lite-On Inc. all series components. The condition of LTD-5523AB is new and unused, you can buy LTD-5523AB Lite-On Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTD-5523AB.
