Manufacturer Part Number: | LTM2892HY-S#PBF |
---|---|
Manufacturer: | Linear Technology |
Product Category: | Digital Isolators |
Available Quantity: | 9249 Pieces |
Unit Price: | Quote by Email |
Description: | SPI Digital Isolator 3500Vrms 6 Channel 4MHz, 8MHz 50kV/µs CMTI 24-BBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTM2892HY-S#PBF Datasheet |
Internal Part Number | 898-LTM2892HY-S#PBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | µModule® Series | |
Category | Isolators | |
Family | Digital Isolators | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Packaging | Tray | |
Part Status | Active | |
Technology | Magnetic Coupling | |
Type | SPI | |
Isolated Power | No | |
Number of Channels | 6 | |
Inputs - Side 1/Side 2 | 3/3 | |
Channel Type | Unidirectional | |
Voltage - Isolation | 3500Vrms | |
Common Mode Transient Immunity (Min) | 50kV/µs | |
Data Rate | 4MHz, 8MHz | |
Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns | |
Pulse Width Distortion (Max) | - | |
Rise / Fall Time (Typ) | 3ns, 3ns | |
Voltage - Supply | 3 V ~ 5.5 V | |
Operating Temperature | -40°C ~ 125°C | |

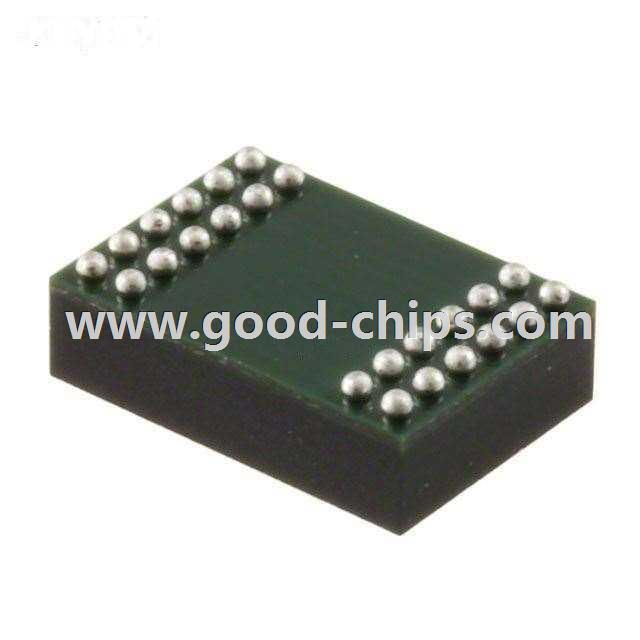

Package / Case | 24-BBGA | |
Supplier Device Package | 24-BGA (9x6.25) | |
Standard Package | 260 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTM2892HY-S#PBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTM2892HY-S#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM2892HY-S#PBF is new and unused, you can buy LTM2892HY-S#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM2892HY-S#PBF.
