Manufacturer Part Number: | LTM4649IY#PBF |
---|---|
Manufacturer: | Linear Technology |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | DC/DC CONVERTER 0.6-3.3V 33W |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTM4649IY#PBF Datasheet |
Internal Part Number | 898-LTM4649IY#PBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Reference Design Library | DC1856A-B: 1 ~ 3.3V @ 10A, 4.5 ~ 16V in, Buck | |
PCN Design/Specification | LTM4649 Design Chg 17/Aug/2015 | |
Online Catalog | µModule® Series LTM4649 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Packaging | Tray | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 16V | |
Voltage - Output 1 | 0.6 ~ 3.3 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 10A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | OCP, OVP | |
Mounting Type | Surface Mount | |

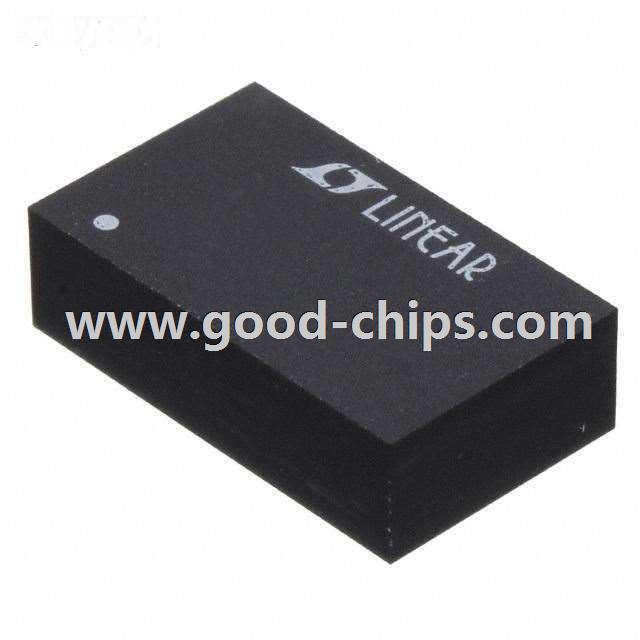

Package / Case | 68-BGA | |
Size / Dimension | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | |
Operating Temperature | -40°C ~ 125°C | |
Efficiency | - | |
Power (Watts) - Max | - | |
Standard Package | 170 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTM4649IY#PBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTM4649IY#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM4649IY#PBF is new and unused, you can buy LTM4649IY#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM4649IY#PBF.
