Manufacturer Part Number: | LTM8001MPY#PBF |
---|---|
Manufacturer: | Linear Technology |
Product Category: | DC DC Converters |
Available Quantity: | 9117 Pieces |
Unit Price: | Quote by Email |
Description: | IC REG 6 BUCK/LINEAR 121BGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LTM8001MPY#PBF Datasheet |
Internal Part Number | 898-LTM8001MPY#PBF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | µModule Products | |
PCN Design/Specification | LTM8001 Datasheet Update 29/May/2015 | |
Online Catalog | µModule® Series LTM8001 | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Linear Technology | |
Series | µModule® | |
Packaging | Tray | |
Part Status | Active | |
Type | Non-Isolated PoL Module | |
Number of Outputs | 6 | |
Voltage - Input (Min) | 6V | |
Voltage - Input (Max) | 36V | |
Voltage - Output 1 | 1.2 ~ 24 V | |
Voltage - Output 2 | 0 ~ 24 V | |
Voltage - Output 3 | 0 ~ 24 V | |
Current - Output (Max) | 5A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | OTP, OVP, SCP, UVLO | |
Mounting Type | Surface Mount | |

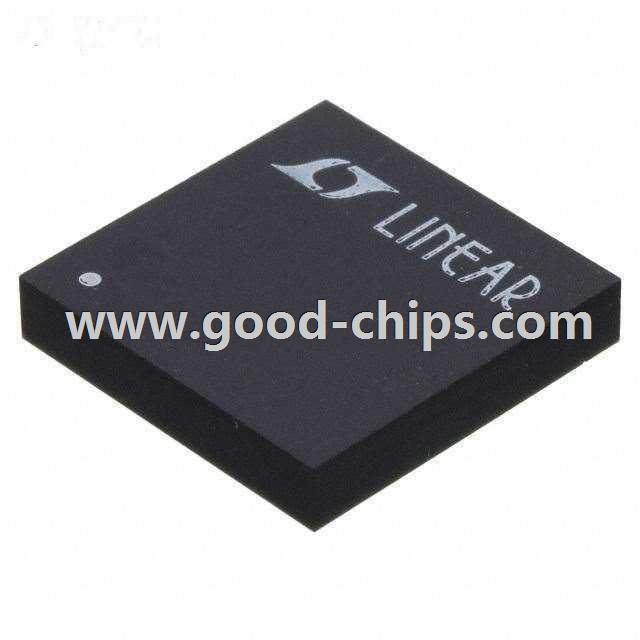

Package / Case | 121-BGA | |
Size / Dimension | 0.63" L x 0.63" W x 0.13" H (16.0mm x 16.0mm x 3.4mm) | |
Operating Temperature | -55°C ~ 125°C | |
Efficiency | - | |
Power (Watts) - Max | - | |
Standard Package | 119 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LTM8001MPY#PBF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LTM8001MPY#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTM8001MPY#PBF is new and unused, you can buy LTM8001MPY#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTM8001MPY#PBF.
