| Manufacturer Part Number: | LV8829LFQA-NH |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Bi-CMOS Parallel, PWM 24-VQFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LV8829LFQA-NH Datasheet |
| Internal Part Number | 898-LV8829LFQA-NH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (3) | |
| Interface | Parallel, PWM | |
| Technology | Bi-CMOS | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 1.5A | |
| Voltage - Supply | 8 V ~ 35 V | |
| Voltage - Load | 8 V ~ 35 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-WFQFN Exposed Pad | |

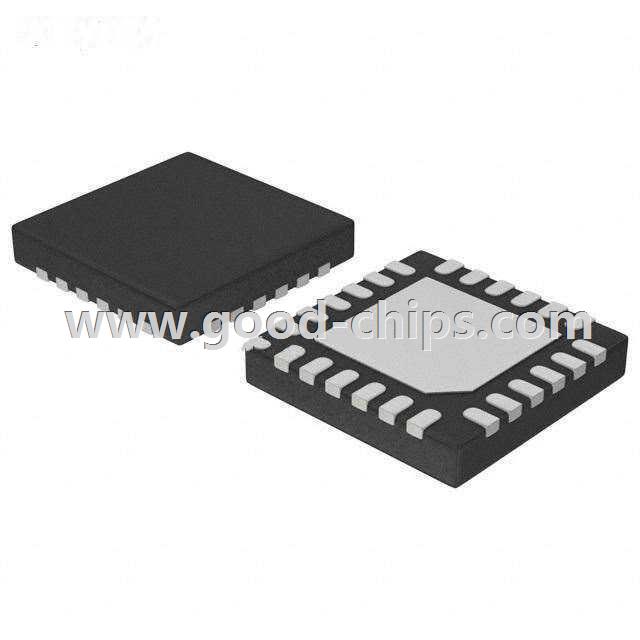

| Supplier Device Package | 24-VQFN (4x4) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LV8829LFQA-NH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LV8829LFQA-NH is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of LV8829LFQA-NH is new and unused, you can buy LV8829LFQA-NH ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LV8829LFQA-NH.
