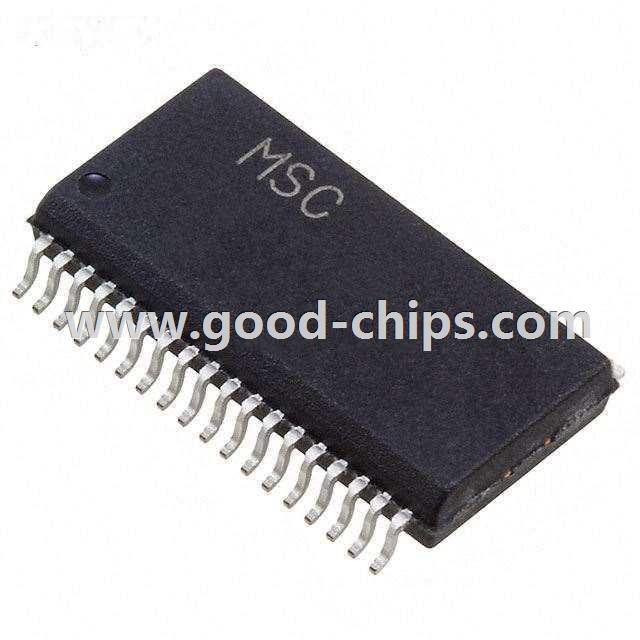

| Manufacturer Part Number: | LX2273IDB-TR |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 4 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 500mA 36-QSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LX2273IDB-TR Datasheet |
| Internal Part Number | 898-LX2273IDB-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | LX2260/LX22 Devices 16/Jul/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | DC DC Controller | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | No | |
| Number of Outputs | 4 | |
| Voltage - Supply (Min) | 8V | |
| Voltage - Supply (Max) | 28V | |
| Voltage - Output | - | |
| Current - Output / Channel | 500mA | |
| Frequency | 670kHz | |
| Dimming | Analog, PWM | |
| Applications | Lighting | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 36-BSOP (0.295", 7.50mm Width) | |
| Supplier Device Package | 36-QSOP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LX2273IDB-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LX2273IDB-TR is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LX2273IDB-TR is new and unused, you can buy LX2273IDB-TR Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LX2273IDB-TR.
