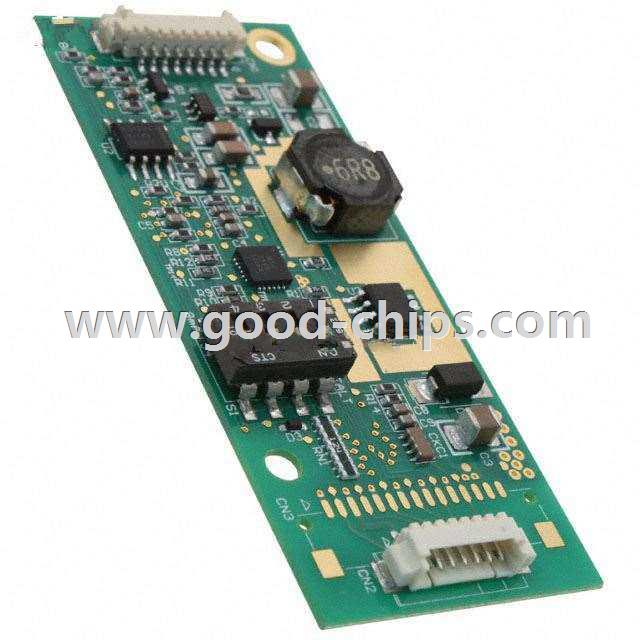

| Manufacturer Part Number: | LXMG1960-28-03 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 25mA 35V (Max) Constant Current LED Driver Boost Topology 6 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LXMG1960-28-03 Datasheet |
| Internal Part Number | 898-LXMG1960-28-03 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 12/Mar/2014 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Obsolete | |
| Type | Constant Current | |
| Topology | Boost | |
| Number of Outputs | 6 | |
| Voltage - Input (Min) | 4.75V | |
| Voltage - Input (Max) | 28V | |
| Voltage - Output | 35V (Max) | |
| Current - Output (Max) | 25mA | |
| Power (Watts) | 5W | |
| Voltage - Isolation | - | |
| Dimming | Analog, PWM | |
| Features | OTP, OVP, SCP | |
| Ratings | - | |
| Operating Temperature | -30°C ~ 80°C | |
| Efficiency | 85% | |
| Termination Style | Terminal Block | |
| Size / Dimension | 2.72" L x 1.10" W x 0.24" H (69.0mm x 27.9mm x 6.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | - | |
| Weight | 0.001 KG | |
| Standard Package | 1 | |
| Application | Email for details | |
| Replacement Part | LXMG1960-28-03 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LXMG1960-28-03 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of LXMG1960-28-03 is new and unused, you can buy LXMG1960-28-03 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LXMG1960-28-03.
