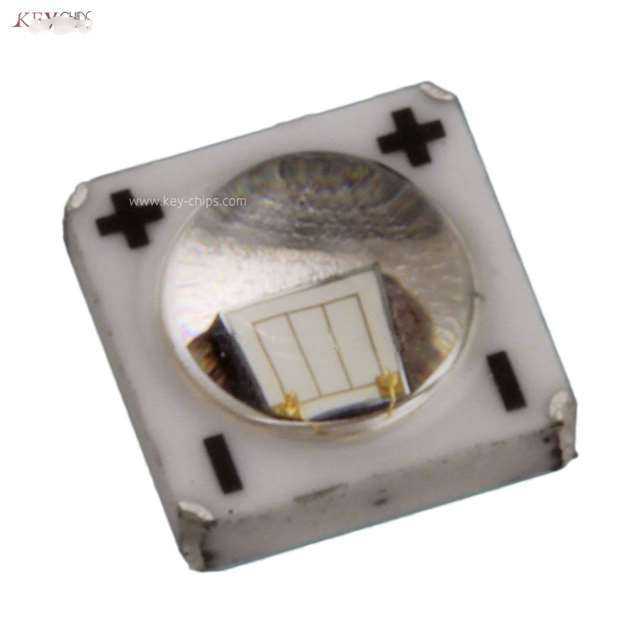

| Manufacturer Part Number: | LZ1-00R100-0000 |
|---|---|
| Manufacturer: | LED Engin Inc. |
| Product Category: | LED Lighting - Color |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Lighting Color - Red 624nm (618nm ~ 630nm) 4-SMD, No Lead Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LZ1-00R100-0000 Datasheet |
| Internal Part Number | 898-LZ1-00R100-0000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Optoelectronics | |
| Family | LED Lighting - Color | |
| Manufacturer | LED Engin Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Color | Red | |
| Wavelength | 624nm (618nm ~ 630nm) | |
| Current - Test | 1A | |
| Voltage - Forward (Vf) (Typ) | 2.6V | |
| Lumens/Watt @ Current - Test | 67 lm/W | |
| Current - Max | 1.2A | |
| Flux @ Current/Temperature - Test | 173 lm (117 lm ~ 228 lm) | |
| Temperature - Test | 25°C | |
| Viewing Angle | 76° | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead Exposed Pad | |
| Thermal Resistance of Package | 10.5°C/W | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LZ1-00R100-0000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LZ1-00R100-0000 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ1-00R100-0000 is new and unused, you can buy LZ1-00R100-0000 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ1-00R100-0000.
