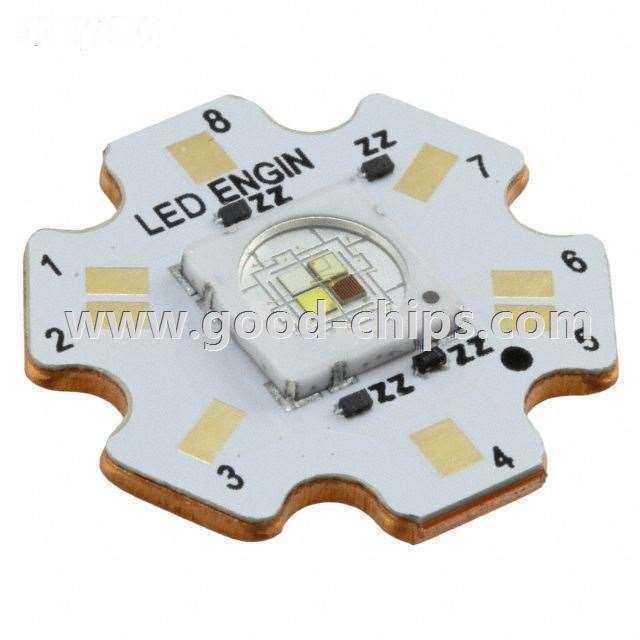

Manufacturer Part Number: | LZ4-64MDC9-0000 |
---|---|
Manufacturer: | LED Engin Inc. |
Product Category: | LED Lighting - COBs, Engines, Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Lighting COBs, Engines, Modules LED Module - Red, Green, Blue, White - Cool (RGBW) Starboard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LZ4-64MDC9-0000 Datasheet |
Internal Part Number | 898-LZ4-64MDC9-0000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Featured Product | LED Engin - LZ4 RGBW Flat-Lens Emitters | |
Online Catalog | LZ4-x4MDCA and LZ4-x4MDC9 | |
Category | Optoelectronics | |
Family | LED Lighting - COBs, Engines, Modules | |
Manufacturer | LED Engin Inc. | |
Series | - | |
Packaging | - | |
Part Status | Active | |
Type | LED Module | |
Color | Red, Green, Blue, White - Cool (RGBW) | |
CCT (K) | 6500K | |
Wavelength | 623nm Red, 523nm Green, 460nm Blue | |
Configuration | Starboard | |
Flux @ Current/Temperature - Test | 65 lm (Typ) Red, 125 lm (Typ) Green, 30 lm (Typ) Blue, 180 lm (Typ) White | |
Current - Test | 700mA | |
Temperature - Test | 25°C | |
Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White | |
Lumens/Watt @ Current - Test | 37 lm/W Red, 50 lm/W Green, 13 lm/W Blue, 80 lm/W White | |
Current - Max | 1A | |
CRI (Color Rendering Index) | - | |
Viewing Angle | 110° | |
Features | - | |
Size / Dimension | 19.90mm Diameter | |
Height | 2.80mm | |
Light Emitting Surface (LES) | - | |
Lens Type | - | |
Standard Package | 40 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LZ4-64MDC9-0000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LZ4-64MDC9-0000 is in stock for immediate shipping now. We are the distributor of LED Engin Inc. all series components. The condition of LZ4-64MDC9-0000 is new and unused, you can buy LZ4-64MDC9-0000 LED Engin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LZ4-64MDC9-0000.
