| Manufacturer Part Number: | M22-2660505 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Board Spacers, Stackers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

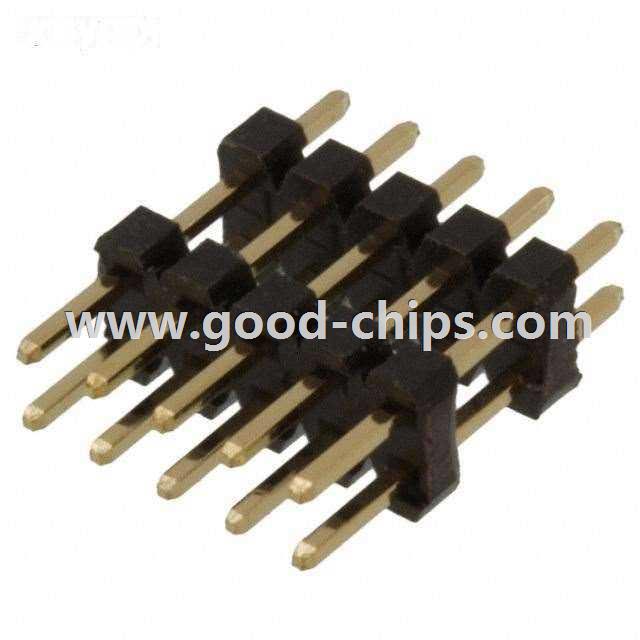

| Description: | 10 Position Header Spacer Connector 0.079" (2.00mm) Gold Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M22-2660505 Datasheet |
| Internal Part Number | 898-M22-2660505 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Series 09/Jul/2014 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Board Spacers, Stackers | |
| Manufacturer | Harwin Inc. | |
| Series | M22 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Number of Positions | 10 | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Length - Overall | 0.469" (11.90mm) | |
| Length - Post (Mating) | 0.138" (3.50mm) | |
| Length - Stack Height | 0.236" (6.00mm) | |
| Length - Tail | 0.095" (2.41mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish - Post (Mating) | Gold | |
| Contact Finish Thickness - Post (Mating) | - | |
| Color | Black | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M22-2660505 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M22-2660505 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M22-2660505 is new and unused, you can buy M22-2660505 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M22-2660505.
