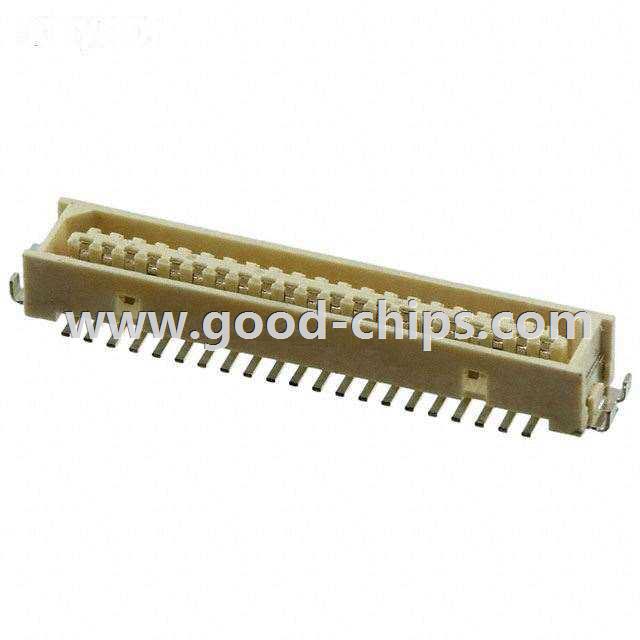

Manufacturer Part Number: | M40-6004146R |
---|---|
Manufacturer: | Harwin Inc. |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 41 Position Connector Plug, Center Strip Contacts Surface Mount Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | M40-6004146R Datasheet |
Internal Part Number | 898-M40-6004146R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | M40 1 mm Fine Pitch, Fully Shrouded, Board-to-Board Connectors | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Harwin Inc. | |
Series | M40 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 41 | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide, Solder Retention | |
Contact Finish | Tin | |
Contact Finish Thickness | 80µin (2.03µm) | |
Mated Stacking Heights | 4.3mm | |
Height Above Board | 0.130" (3.30mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | M40-6004146R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
M40-6004146R is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M40-6004146R is new and unused, you can buy M40-6004146R Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M40-6004146R.
