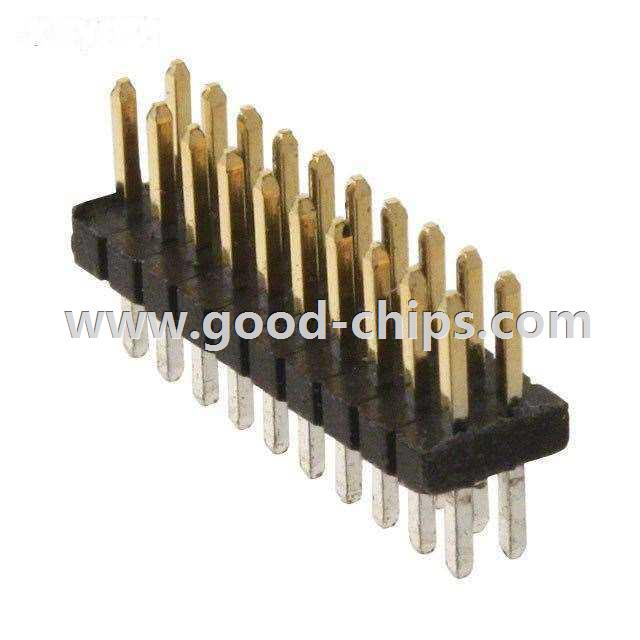

| Manufacturer Part Number: | M50-3501042 |
|---|---|
| Manufacturer: | Harwin Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Headers, Male Pins |
| Available Quantity: | 12194 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN HDR 1.27MM VERT AU 20POS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M50-3501042 Datasheet |
| Internal Part Number | 898-M50-3501042 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 1.27mm Archer Connector Series | |
| Featured Product | Archer M50 Connectors | |
| Online Catalog | Archer M50 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Headers, Male Pins | |
| Manufacturer | Harwin Inc. | |
| Series | Archer M50 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Unshrouded | |
| Number of Positions | 20 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.050" (1.27mm) | |
| Height Stacking (Mating) | 0.126", 0.181", 0.213", 0.217" (3.20mm, 4.60mm, 5.40mm, 5.50mm) | |
| Molding Height Above Board | 0.039" (1.00mm) | |
| Contact Mating Length | 0.118" (3.00mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3µin (0.08µm) | |
| Features | - | |
| Color | Black | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M50-3501042 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M50-3501042 is in stock for immediate shipping now. We are the distributor of Harwin Inc. all series components. The condition of M50-3501042 is new and unused, you can buy M50-3501042 Harwin Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M50-3501042.
