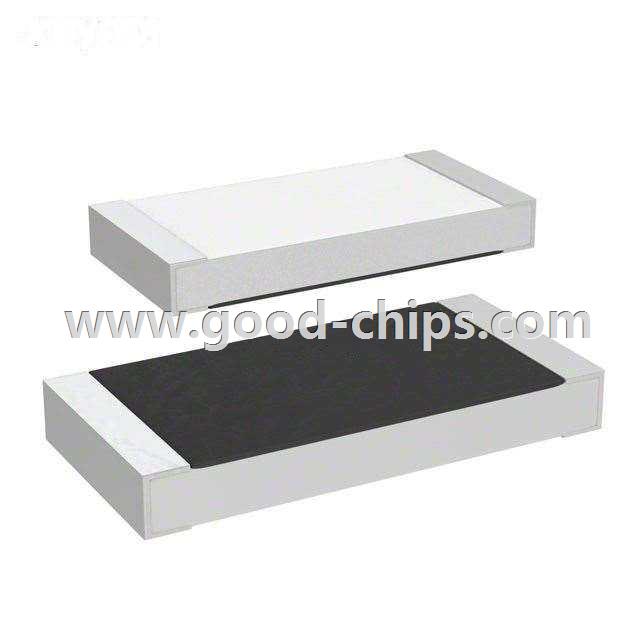

.jpg)
| Manufacturer Part Number: | M55342H09B20D0RWS |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 20 OHM 1% 1W 2512 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | M55342H09B20D0RWS Datasheet |
| Internal Part Number | 898-M55342H09B20D0RWS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Multiple Devices 23/Dec/2014 | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Dale | |
| Series | Military, MIL-PRF-55342, RM2512 | |
| Packaging | Tray - Waffle | |
| Part Status | Active | |
| Resistance (Ohms) | 20 | |
| Tolerance | ±1% | |
| Power (Watts) | 1W | |
| Composition | Thin Film | |
| Features | Military, Non-Inductive | |
| Temperature Coefficient | ±50ppm/°C | |
| Package / Case | 2512 (6432 Metric) | |
| Supplier Device Package | 2512 | |
| Size / Dimension | 0.259" L x 0.124" W (6.58mm x 3.15mm) | |
| Height | 0.033" (0.84mm) | |
| Number of Terminations | 2 | |
| Failure Rate | R (0.01%) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | M55342H09B20D0RWS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
M55342H09B20D0RWS is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of M55342H09B20D0RWS is new and unused, you can buy M55342H09B20D0RWS Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for M55342H09B20D0RWS.
