Manufacturer Part Number: | MA1RAE1701 |
---|---|
Manufacturer: | Amphenol Sine Systems Corp |
Product Category: | Circular Connectors - Housings |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

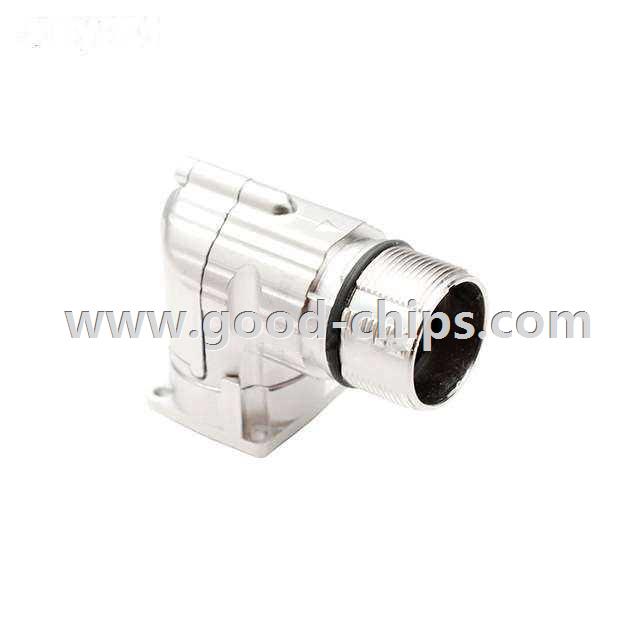

Description: | 17 Position Circular Connector Receptacle for Male or Female Contacts Panel Mount, Right Angle Rotatable, Shielded |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MA1RAE1701 Datasheet |
Internal Part Number | 898-MA1RAE1701 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Circular Connectors - Housings | |
Manufacturer | Amphenol Sine Systems Corp | |
Series | MotionGrade™ M23 A | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle for Male or Female Contacts | |
Number of Positions | 17 | |
Shell Size - Insert | M23-17 | |
Shell Size, MIL | - | |
Contact Type | Crimp | |
Contact Size | 1.0mm | |
Mounting Type | Panel Mount, Right Angle | |
Fastening Type | Threaded | |
Orientation | E | |
Shell Material, Finish | Zinc Die Cast, Nickel Plated | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Features | Rotatable, Shielded | |
Note | Contacts Not Provided | |
Standard Package | 168 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MA1RAE1701 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MA1RAE1701 is in stock for immediate shipping now. We are the distributor of Amphenol Sine Systems Corp all series components. The condition of MA1RAE1701 is new and unused, you can buy MA1RAE1701 Amphenol Sine Systems Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MA1RAE1701.
