| Manufacturer Part Number: | MA4SD1000L |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 2 Independent Schottky 20V 200mA Surface Mount 4-SMD, Flat Leads |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MA4SD1000L Datasheet |
| Internal Part Number | 898-MA4SD1000L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Configuration | 2 Independent | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) (per Diode) | 200mA | |
| Voltage - Forward (Vf) (Max) @ If | 470mV @ 200mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 3ns | |
| Current - Reverse Leakage @ Vr | 20µA @ 10V | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, Flat Leads | |

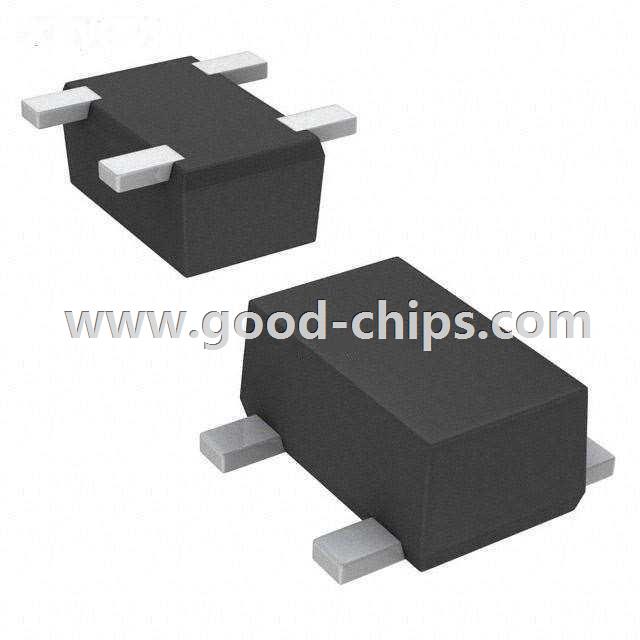

| Supplier Device Package | SSMini4-F1 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MA4SD1000L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MA4SD1000L is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of MA4SD1000L is new and unused, you can buy MA4SD1000L Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MA4SD1000L.
