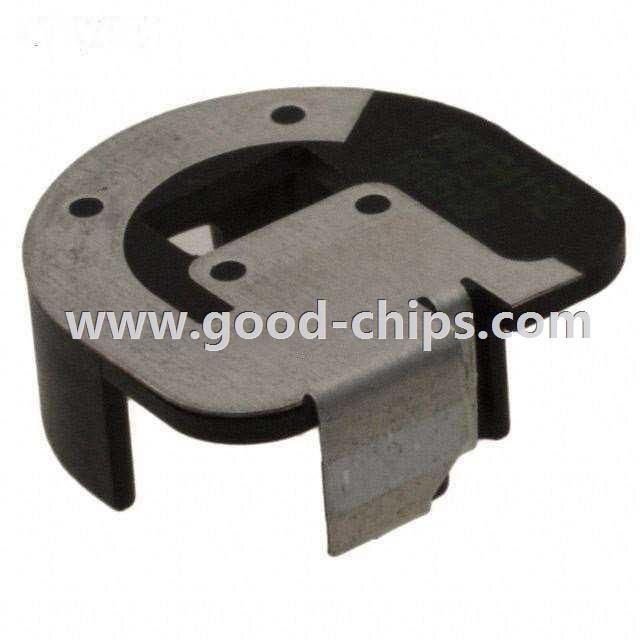

| Manufacturer Part Number: | MAF94192 |
|---|---|
| Manufacturer: | Laird Technologies IAS |
| Product Category: | RF Antennas |
| Available Quantity: | 9810 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4GHz, 5.5GHz WiMax™ Stamped Metal RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz 3dBi, 4dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAF94192 Datasheet |
| Internal Part Number | 898-MAF94192 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | Laird Technologies - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Laird Technologies IAS | |
| Series | D-Puck | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz) | |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | |
| Antenna Type | Stamped Metal | |
| Number of Bands | 2 | |
| VSWR | 2.5 | |
| Return Loss | - | |
| Gain | 3dBi, 4dBi | |
| Power - Max | - | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.236" (6.00mm) | |
| Applications | WiMax™ | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAF94192 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAF94192 is in stock for immediate shipping now. We are the distributor of Laird Technologies IAS all series components. The condition of MAF94192 is new and unused, you can buy MAF94192 Laird Technologies IAS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAF94192.
