Manufacturer Part Number: | MARR-5-32-38 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Magnetic, Reed Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

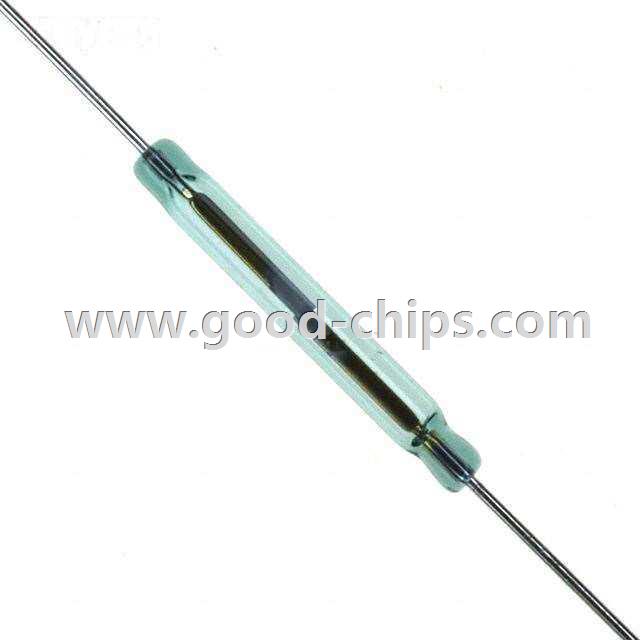

Description: | Glass Body Reed Switch SPST-NO 32 ~ 38AT Operate Range 10W 350mA (AC), 500mA (DC) 700V Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MARR-5-32-38 Datasheet |
Internal Part Number | 898-MARR-5-32-38 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
RoHS Information | Cert of Compliance | |
Online Catalog | MARR-5 Series | |
Category | Switches | |
Family | Magnetic, Reed Switches | |
Manufacturer | Littelfuse Inc. | |
Series | MARR-5 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Glass Body | |
Circuit | SPST-NO | |
Operate Range | 32 ~ 38AT | |
Release Range | - | |
Current - Switching | 350mA (AC), 500mA (DC) | |
Voltage - Switching AC | 700V | |
Voltage - Switching DC | 1000V | |
Power - Rated | 10W | |
Operate Time | 0.75ms | |
Release Time | 0.3ms | |
Mounting Type | Through Hole | |
Termination Style | Axial | |
Length - Overall | 2.235" (56.77mm) | |
Size - Body | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | |
Height Above Board | - | |
Operating Temperature | -75°C ~ 125°C | |
Capacitance | 0.20pF | |
Current - Carry | 1.3A (DC) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MARR-5-32-38 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MARR-5-32-38 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MARR-5-32-38 is new and unused, you can buy MARR-5-32-38 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MARR-5-32-38.
