Manufacturer Part Number: | MAX15050EWE+T |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 11510 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 4A 16-WFBGA, WLBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX15050EWE+T Datasheet |
Internal Part Number | 898-MAX15050EWE+T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Power-Supply Solutions for Xilinx FPGAs Power-Supply Solutions for Altera FPGAs | |
Online Catalog | Buck (Step-Down) IC | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Maxim Integrated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 2.9V | |
Voltage - Input (Max) | 5.5V | |
Voltage - Output (Min/Fixed) | 0.6V | |
Voltage - Output (Max) | 4.95V | |
Current - Output | 4A | |
Frequency - Switching | 1MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

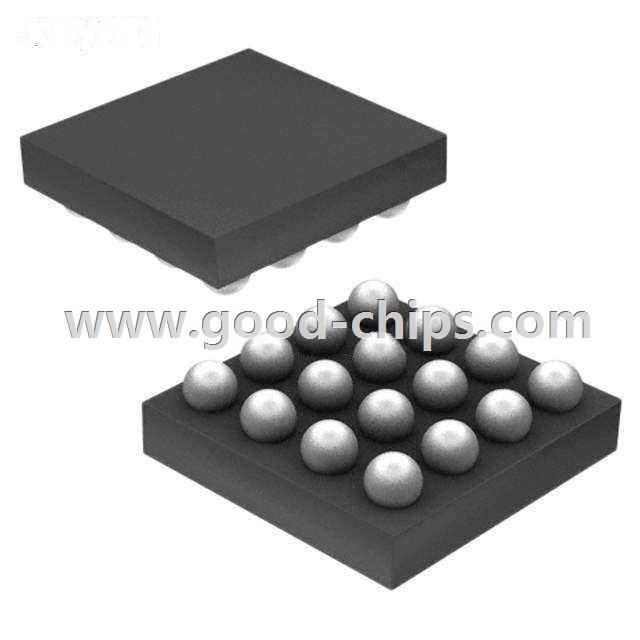

Package / Case | 16-WFBGA, WLBGA | |
Supplier Device Package | 16-WLP | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX15050EWE+T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX15050EWE+T is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX15050EWE+T is new and unused, you can buy MAX15050EWE+T Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX15050EWE+T.
