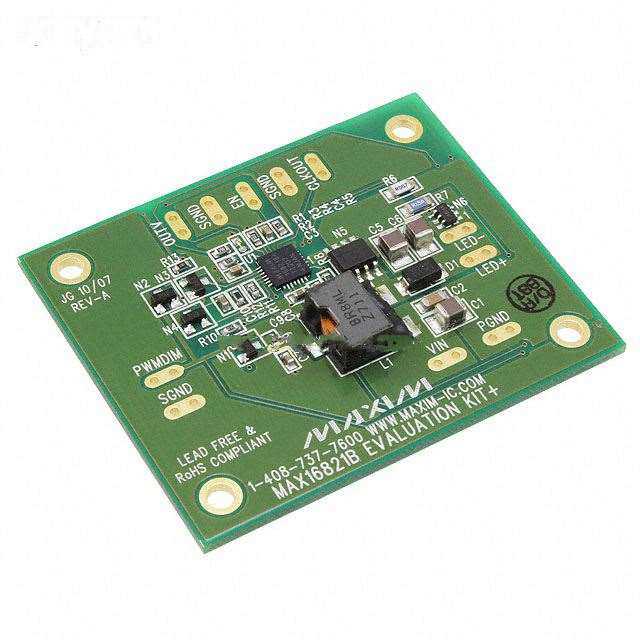

Manufacturer Part Number: | MAX16821BEVKIT+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | MAX16821 1, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX16821BEVKIT+ Datasheet |
Internal Part Number | 898-MAX16821BEVKIT+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
Design Resources | Development Tool Selector Lighting Product Selector | |
Online Catalog | MAX16821B Evaluation Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Maxim Integrated | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 660mA | |
Outputs and Type | 1, Non-Isolated | |
Voltage - Output | 28V | |
Features | Dimmable | |
Voltage - Input | 7 V ~ 24 V | |
Supplied Contents | Board | |
Utilized IC / Part | MAX16821 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX16821BEVKIT+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX16821BEVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX16821BEVKIT+ is new and unused, you can buy MAX16821BEVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX16821BEVKIT+.
