Manufacturer Part Number: | MAX17075EVKIT+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |

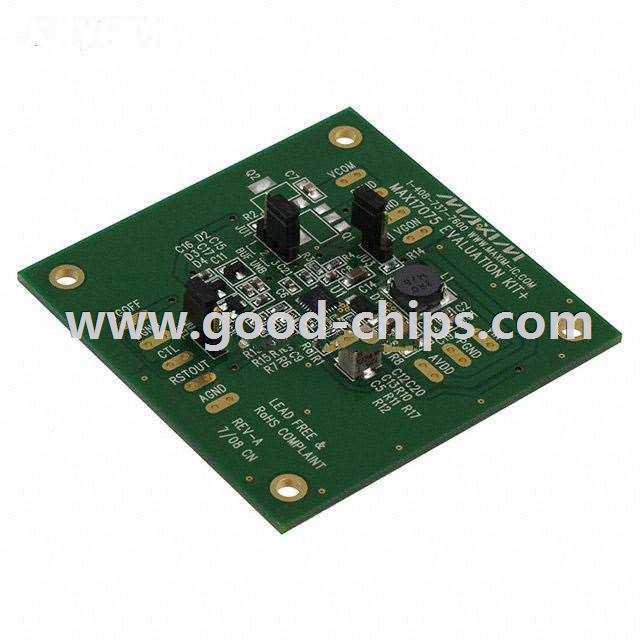

Description: | MAX17075 - Special Purpose DC/DC, LCD Supply 4, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX17075EVKIT+ Datasheet |
Internal Part Number | 898-MAX17075EVKIT+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Featured Product | MAX17075 Boost Regulator | |
Reference Design Library | MAX17075EVKIT+: 3Ch + Power Amp, LCD TFT Supply | |
Online Catalog | MAX17075 Evaluation Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Maxim Integrated | |
Series | - | |
Part Status | Active | |
Main Purpose | Special Purpose DC/DC, LCD Supply | |
Outputs and Type | 4, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 6.5V, 13V, 30V, -7V | |
Current - Output | 500mA, 500mA, 60mA, 30mA | |
Voltage - Input | 2.5 V ~ 5.5 V | |
Regulator Topology | Boost, Inverting | |
Frequency - Switching | 1.2MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MAX17075 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX17075EVKIT+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX17075EVKIT+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX17075EVKIT+ is new and unused, you can buy MAX17075EVKIT+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX17075EVKIT+.
