| Manufacturer Part Number: | MAX6785TCB+ |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | PMIC - Battery Management |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Battery Battery Monitor IC Multi-Chemistry 12-TQFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MAX6785TCB+ Datasheet |
| Internal Part Number | 898-MAX6785TCB+ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| PCN Obsolescence/ EOL | Multiple Devices 08/Jan/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Management | |
| Manufacturer | Maxim Integrated | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Function | Battery Monitor | |
| Battery Chemistry | Multi-Chemistry | |
| Number of Cells | 3 | |
| Fault Protection | Reverse Battery | |
| Interface | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

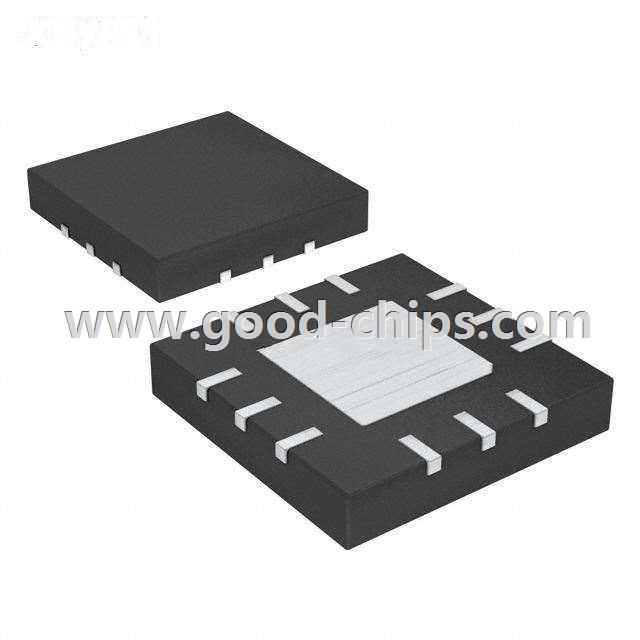

| Package / Case | 12-WFQFN Exposed Pad | |
| Supplier Device Package | 12-TQFN (3x3) | |
| Drawing Number | 175; 21-0136; TC; 12 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MAX6785TCB+ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MAX6785TCB+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX6785TCB+ is new and unused, you can buy MAX6785TCB+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX6785TCB+.
