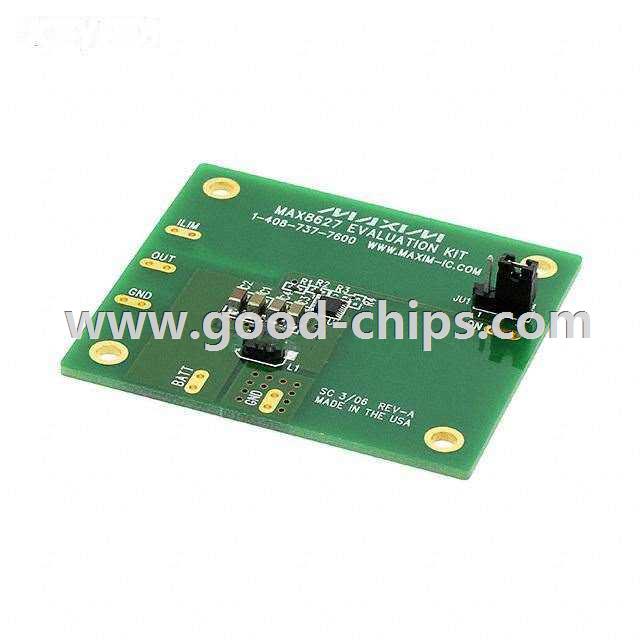

Manufacturer Part Number: | MAX8627EVKIT |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9015 Pieces |
Unit Price: | Quote by Email |
Description: | MAX8627 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MAX8627EVKIT Datasheet |
Internal Part Number | 898-MAX8627EVKIT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | MAX8627 Evaluation Kit | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | Maxim Integrated | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 5V | |
Current - Output | 1A | |
Voltage - Input | 1.8 V ~ 5.5 V | |
Regulator Topology | Boost | |
Frequency - Switching | 1MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MAX8627 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MAX8627EVKIT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MAX8627EVKIT is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MAX8627EVKIT is new and unused, you can buy MAX8627EVKIT Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MAX8627EVKIT.
