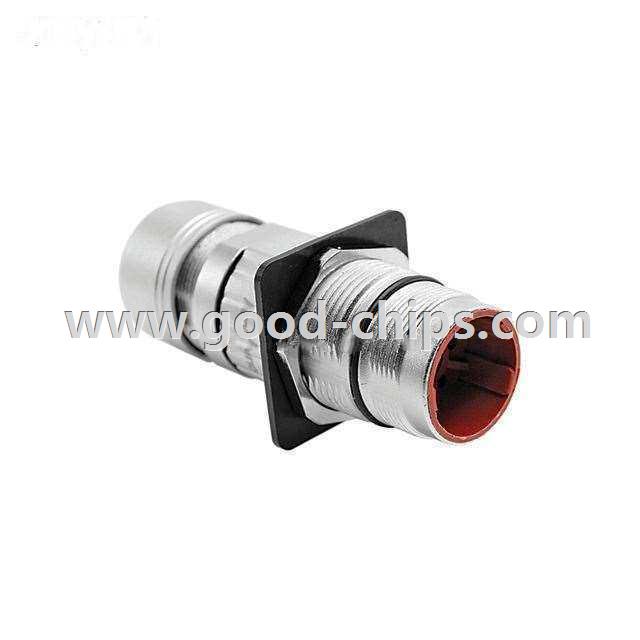

| Manufacturer Part Number: | MB3TNN0800-S1 |
|---|---|
| Manufacturer: | Amphenol Sine Systems Corp |
| Product Category: | Circular Connectors - Housings |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 (4 + 3 Power + PE) Position Circular Connector Receptacle for Male Contacts Panel Mount, Bulkhead - Front Side Nut Shielded, Strain Relief |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MB3TNN0800-S1 Datasheet |
| Internal Part Number | 898-MB3TNN0800-S1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Housings | |
| Manufacturer | Amphenol Sine Systems Corp | |
| Series | MotionGrade™ M23 B | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle for Male Contacts | |
| Number of Positions | 8 (4 + 3 Power + PE) | |
| Shell Size - Insert | M23-8 | |
| Shell Size, MIL | - | |
| Contact Type | Crimp | |
| Contact Size | 1.0mm (4), 2.0mm (4) | |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | |
| Fastening Type | Threaded | |
| Orientation | Keyed | |
| Shell Material, Finish | Zinc Die Cast, Nickel Plated | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Shielded, Strain Relief | |
| Note | Contacts Not Provided | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MB3TNN0800-S1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MB3TNN0800-S1 is in stock for immediate shipping now. We are the distributor of Amphenol Sine Systems Corp all series components. The condition of MB3TNN0800-S1 is new and unused, you can buy MB3TNN0800-S1 Amphenol Sine Systems Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MB3TNN0800-S1.
