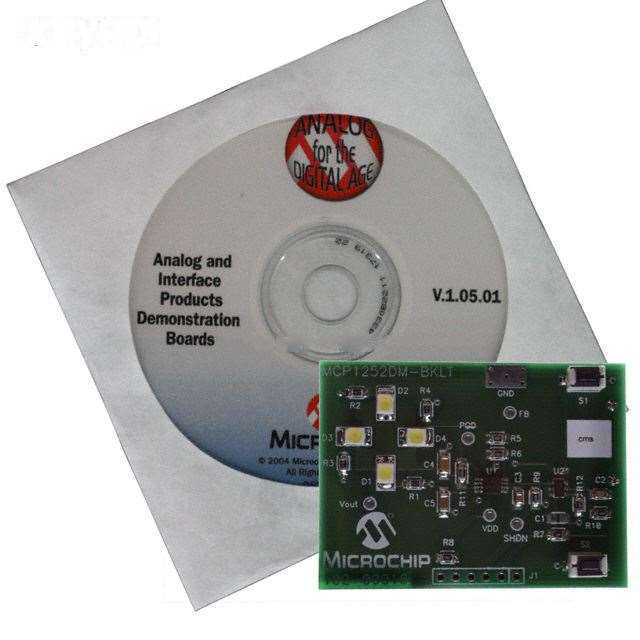

| Manufacturer Part Number: | MCP1252DM-BKLT |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MCP1252 1, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP1252DM-BKLT Datasheet |
| Internal Part Number | 898-MCP1252DM-BKLT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | MCP1252DM-BKLT Gerber Files Development Tool Selector Lighting Product Selector | |
| Reference Design Library | MCP1252DM-BKLT: 4 LEDs @ 40 mA, 2.3 ~ 5.5 V in | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP1252 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 120mA | |
| Outputs and Type | 1, Non-Isolated | |
| Voltage - Output | - | |
| Features | Short-Circuit and Thermal Protection, Shutdown | |
| Voltage - Input | 2 V ~ 5.5 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP1252 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP1252DM-BKLT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP1252DM-BKLT is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1252DM-BKLT is new and unused, you can buy MCP1252DM-BKLT Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP1252DM-BKLT.
