| Manufacturer Part Number: | MCP1630DM-DDBS1 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

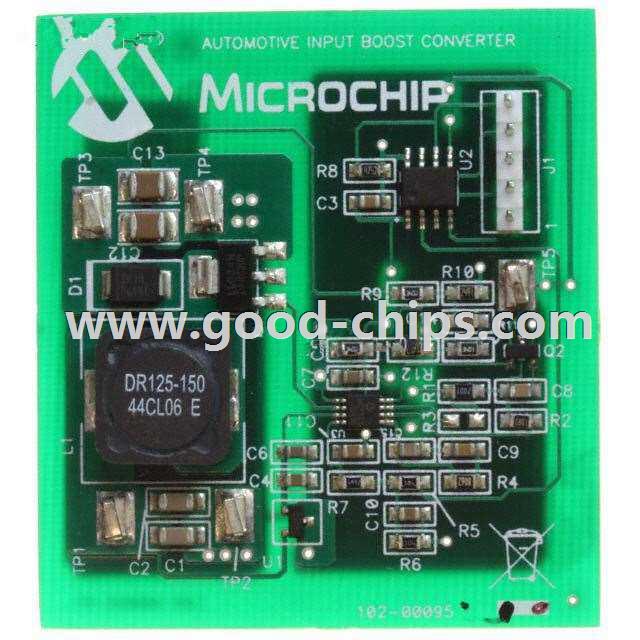

| Description: | MCP1630 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP1630DM-DDBS1 Datasheet |
| Internal Part Number | 898-MCP1630DM-DDBS1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | MCP1630DM-DDBS1 Gerbers Development Tool Selector | |
| Reference Design Library | MCP1630DM-DDBS1: 36.5V @ 400mA, 12V in (9 ~ 18V) | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP1630 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 36.5V | |
| Current - Output | 400mA | |
| Voltage - Input | 9 V ~ 18 V | |
| Regulator Topology | Boost | |
| Frequency - Switching | 500kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | MCP1630 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP1630DM-DDBS1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP1630DM-DDBS1 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP1630DM-DDBS1 is new and unused, you can buy MCP1630DM-DDBS1 Microchip Technology with us at a very low price and quick delivery.
