Manufacturer Part Number: | MCP3421A7T-E/CH |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 18 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta SOT-23-6 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCP3421A7T-E/CH Datasheet |
Internal Part Number | 898-MCP3421A7T-E/CH | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Analog to Digital Converters (ADC) | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Number of Bits | 18 | |
Sampling Rate (Per Second) | 3.75 | |
Number of Inputs | 1 | |
Input Type | Differential | |
Data Interface | I²C | |
Configuration | PGA-ADC | |
Ratio - S/H:ADC | - | |
Number of A/D Converters | 1 | |
Architecture | Sigma-Delta | |
Reference Type | Internal | |
Voltage - Supply, Analog | 2.7 V ~ 5.5 V | |
Voltage - Supply, Digital | 2.7 V ~ 5.5 V | |
Features | PGA | |
Operating Temperature | -40°C ~ 125°C | |

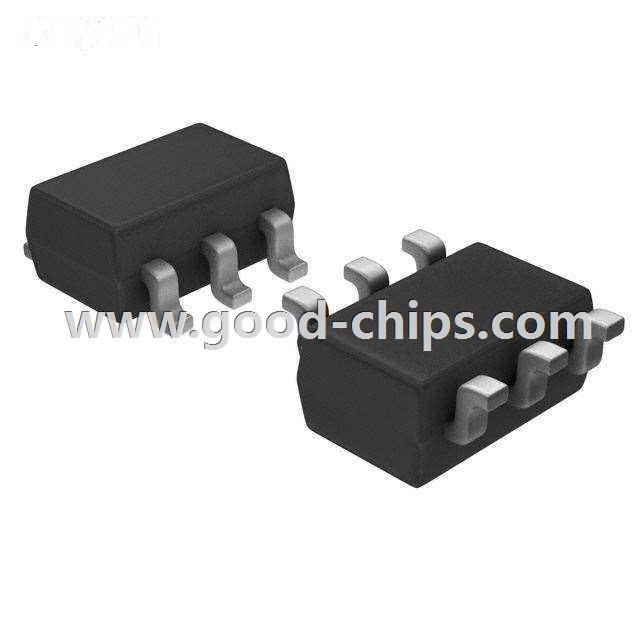

Package / Case | SOT-23-6 | |
Supplier Device Package | SOT-23-6 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCP3421A7T-E/CH | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCP3421A7T-E/CH is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP3421A7T-E/CH is new and unused, you can buy MCP3421A7T-E/CH Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP3421A7T-E/CH.
