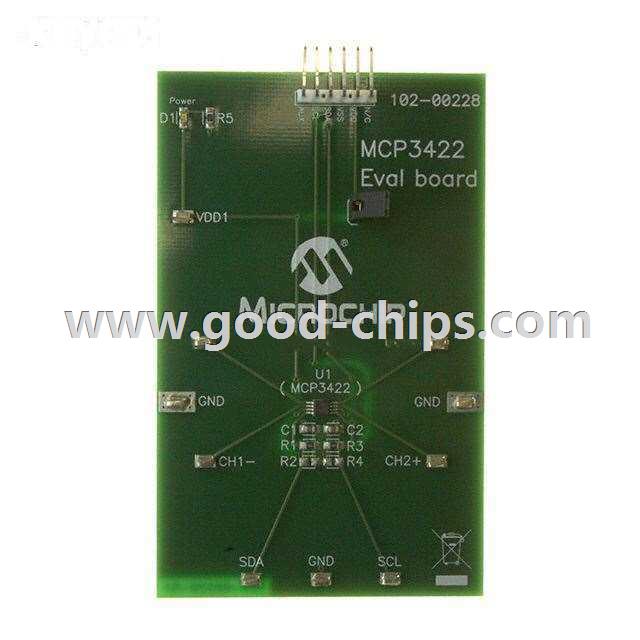

| Manufacturer Part Number: | MCP3422EV |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | MCP3422 PICkit™ 18 Bit 3.75 Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP3422EV Datasheet |
| Internal Part Number | 898-MCP3422EV | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCP3901 Analog Front End | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP342xEV Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Microchip Technology | |
| Series | PICkit™ | |
| Part Status | Active | |
| Number of A/D Converters | 2 | |
| Number of Bits | 18 | |
| Sampling Rate (Per Second) | 3.75 | |
| Data Interface | Serial | |
| Input Range | ±2.048 V | |
| Power (Typ) @ Conditions | - | |
| Utilized IC / Part | MCP3422 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP3422EV | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP3422EV is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP3422EV is new and unused, you can buy MCP3422EV Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP3422EV.
