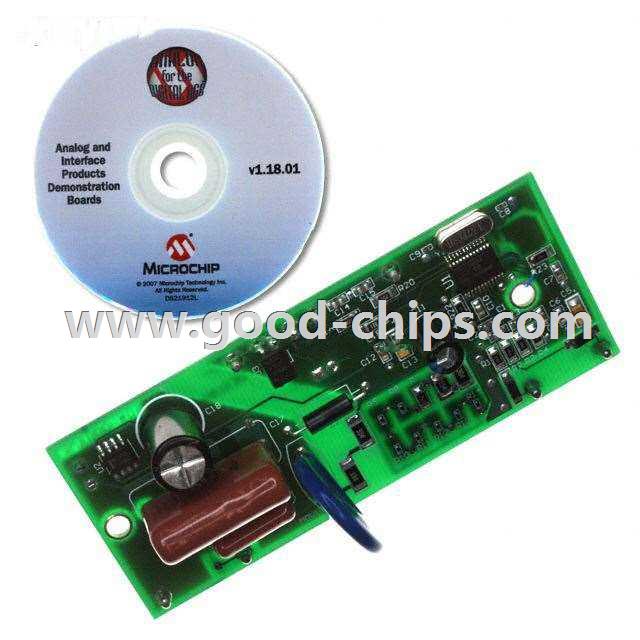

| Manufacturer Part Number: | MCP3905RD-PM1 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | MCP3905/6 - Power Management, Energy/Power Meter Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP3905RD-PM1 Datasheet |
| Internal Part Number | 898-MCP3905RD-PM1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | MCP3905/6 Application Note AN994 | |
| Product Training Modules | MCP3901 Analog Front End | |
| Design Resources | MCP3905RD-PM1 Gerber Files Development Tool Selector | |
| Reference Design Library | MCP3905RD-PM1: Single Phase Energy Meter | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP3905 Energy Meter Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Energy/Power Meter | |
| Embedded | No | |
| Utilized IC / Part | MCP3905/6 | |
| Primary Attributes | 1-Phase, 220 VAC, In Case, With Mechanical Counter | |
| Secondary Attributes | On Board Transformerless AC/DC 5V Supply | |
| Supplied Contents | Reference Design, Documents | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP3905RD-PM1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP3905RD-PM1 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP3905RD-PM1 is new and unused, you can buy MCP3905RD-PM1 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP3905RD-PM1.
