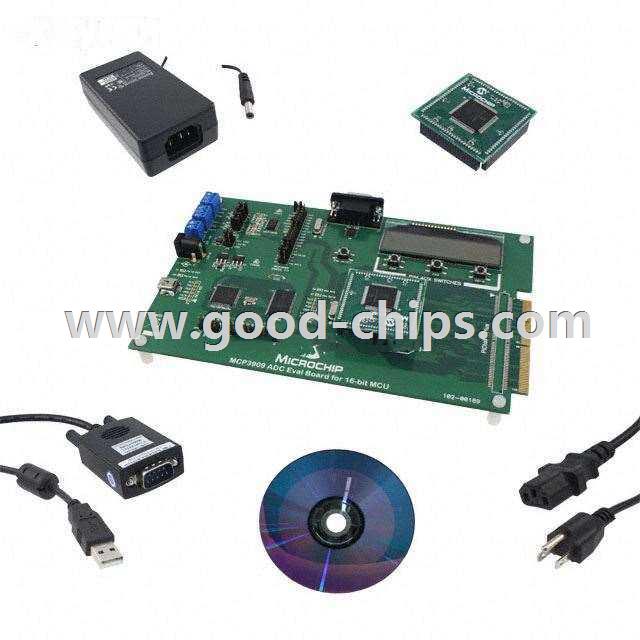

| Manufacturer Part Number: | MCP3909EV-MCU16 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MCP3909 - 16 Bit 15k Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MCP3909EV-MCU16 Datasheet |
| Internal Part Number | 898-MCP3909EV-MCU16 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCP3901 Analog Front End | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Obsolete | |
| Number of A/D Converters | 2 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 15k | |
| Data Interface | Serial | |
| Input Range | ±1 V | |
| Power (Typ) @ Conditions | - | |
| Utilized IC / Part | MCP3909 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MCP3909EV-MCU16 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MCP3909EV-MCU16 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MCP3909EV-MCU16 is new and unused, you can buy MCP3909EV-MCU16 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCP3909EV-MCU16.
