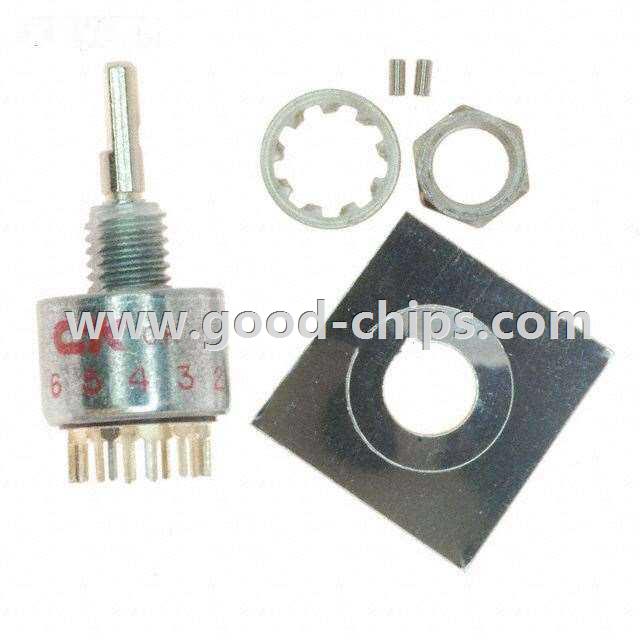

| Manufacturer Part Number: | MD00L1NCQD |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Rotary Switches |
| Available Quantity: | 9167 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 6 Position DP6T 250mA (AC/DC) 125VAC Panel Mount, Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MD00L1NCQD Datasheet |
| Internal Part Number | 898-MD00L1NCQD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| Online Catalog | M Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | C&K Components | |
| Series | M | |
| Part Status | Active | |
| Number of Positions | 6 | |
| Index Stops | Continuous | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 2 | |
| Circuit per Deck | DP6T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 250mA (AC/DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Flatted (3.17mm Dia) | |
| Actuator Length | 10.16mm | |
| Angle of Throw | 30° | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination Style | PC Pin | |
| Features | - | |
| Depth Behind Panel | 10.42mm | |
| Panel Cutout Dimensions | Circular - 6.60mm Dia | |
| Operating Force, Torque | 4 ~ 7 in-oz | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MD00L1NCQD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MD00L1NCQD is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of MD00L1NCQD is new and unused, you can buy MD00L1NCQD C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MD00L1NCQD.
