| Manufacturer Part Number: | MDB-E09PE760 |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9169 Pieces |
| Unit Price: | Quote by Email |

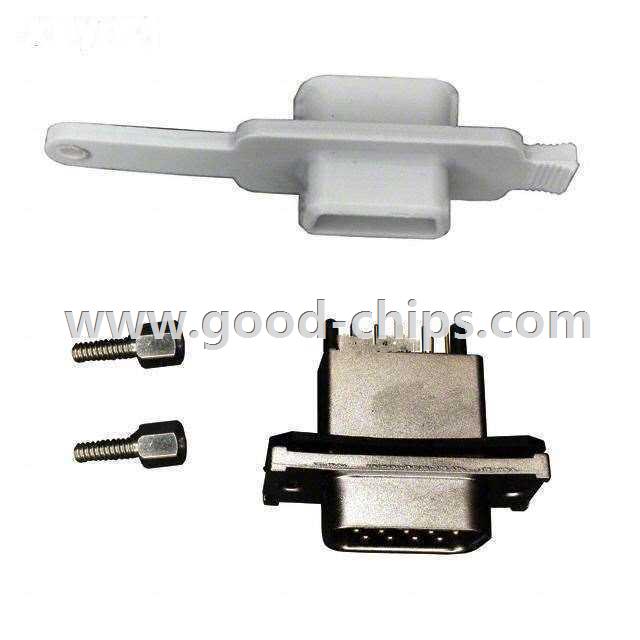

| Description: | 9 Position D-Sub Plug, Male Pins Connector, Through Hole Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDB-E09PE760 Datasheet |
| Internal Part Number | 898-MDB-E09PE760 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Harsh Environment Solutions Portfolio | |
| Featured Product | Harsh Environment Connectors Communication Solutions Industrial Solutions | |
| 3D Model | MDBE09PE760.igs MDBE09PE760.stp | |
| Online Catalog | MDB Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol Commercial Products | |
| Series | MDB | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder | |
| Features | Board Guide, Dust Cap | |
| Shell Material, Finish | Zinc, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | 125V | |
| Current Rating | 5A | |
| Housing Material | Polyester | |
| Color | Black | |
| Standard Package | 36 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDB-E09PE760 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDB-E09PE760 is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of MDB-E09PE760 is new and unused, you can buy MDB-E09PE760 Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDB-E09PE760.
