| Manufacturer Part Number: | MDBE09PE860 |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9415 Pieces |
| Unit Price: | Quote by Email |

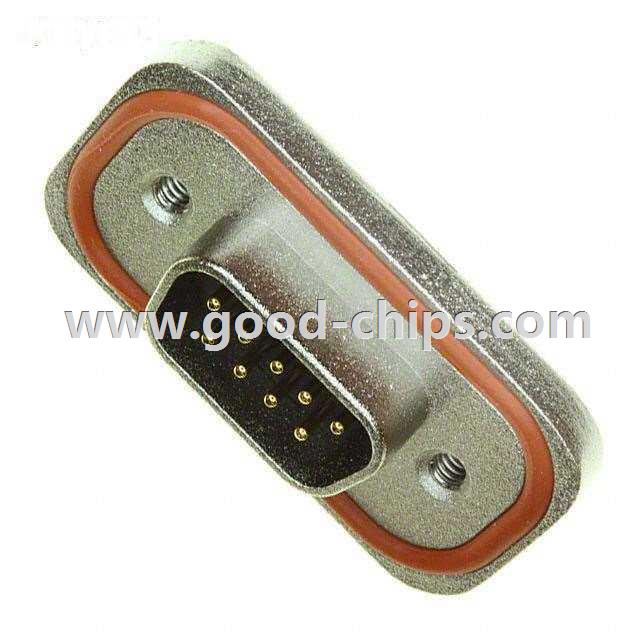

| Description: | 9 Position D-Sub Plug, Male Pins Connector, Through Hole Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDBE09PE860 Datasheet |
| Internal Part Number | 898-MDBE09PE860 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Harsh Environment Solutions Portfolio | |
| Featured Product | Harsh Environment Connectors Communication Solutions Industrial Solutions | |
| 3D Model | MDBE09PE860.igs MDBE09PE860.stp | |
| Online Catalog | MDB Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol Commercial Products | |
| Series | MDB | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 9 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 1 (DE, E) | |
| Contact Type | Signal | |
| Mounting Type | Through Hole | |
| Flange Feature | Board Side (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Zinc, Nickel Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | 125V | |
| Current Rating | 5A | |
| Housing Material | Polyester | |
| Color | Black | |
| Standard Package | 48 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDBE09PE860 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDBE09PE860 is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of MDBE09PE860 is new and unused, you can buy MDBE09PE860 Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDBE09PE860.
