| Manufacturer Part Number: | MDSR-4-12-38 |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic, Reed Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

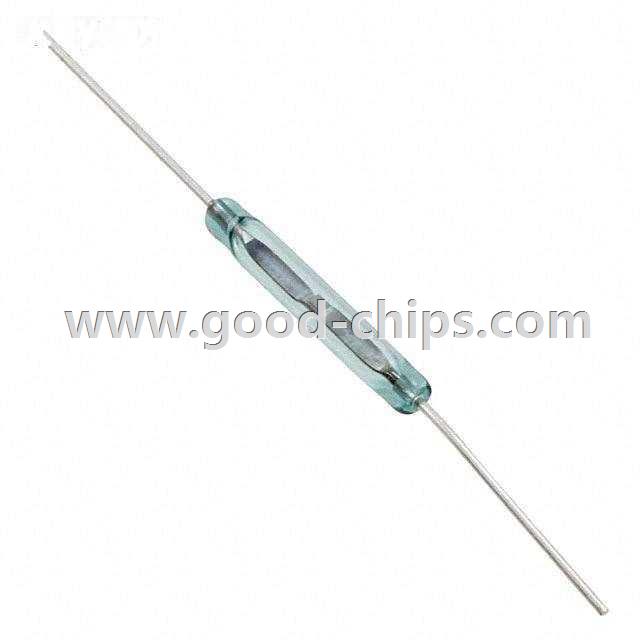

| Description: | Glass Body Reed Switch SPST-NO 12 ~ 38AT Operate Range 10W 500mA (DC) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDSR-4-12-38 Datasheet |
| Internal Part Number | 898-MDSR-4-12-38 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
| RoHS Information | Cert of Compliance | |
| Category | Switches | |
| Family | Magnetic, Reed Switches | |
| Manufacturer | Littelfuse Inc. | |
| Series | MDSR-4 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Glass Body | |
| Circuit | SPST-NO | |
| Operate Range | 12 ~ 38AT | |
| Release Range | - | |
| Current - Switching | 500mA (DC) | |
| Voltage - Switching AC | - | |
| Voltage - Switching DC | 200V | |
| Power - Rated | 10W | |
| Operate Time | 0.6ms | |
| Release Time | 0.2ms | |
| Mounting Type | Through Hole | |
| Termination Style | Axial | |
| Length - Overall | 1.590" (40.39mm) | |
| Size - Body | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | |
| Height Above Board | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Capacitance | 0.20pF | |
| Current - Carry | 1.2A (DC) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDSR-4-12-38 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDSR-4-12-38 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MDSR-4-12-38 is new and unused, you can buy MDSR-4-12-38 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDSR-4-12-38.
