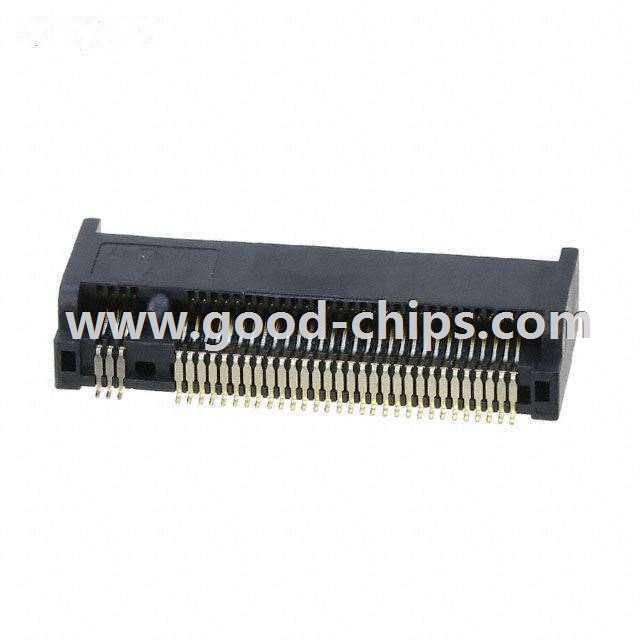

| Manufacturer Part Number: | MDT420B02001 |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | M.2 PCIE RECEPTACLE 67P SMT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MDT420B02001 Datasheet |
| Internal Part Number | 898-MDT420B02001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | MDT420B0x001.igs MDT420B0x001.stp | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | Amphenol Commercial Products | |
| Series | M.2 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Card Type | - | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 67 | |
| Card Thickness | - | |
| Number of Rows | 2 | |
| Pitch | 0.020" (0.50mm) | |
| Features | Board Lock, Keyed | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | - | |
| Operating Temperature | -40°C ~ 80°C | |
| Material - Insulation | Liquid Crystal Polymer (LCP) | |
| Read Out | Dual | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MDT420B02001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MDT420B02001 is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of MDT420B02001 is new and unused, you can buy MDT420B02001 Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MDT420B02001.
