Manufacturer Part Number: | MEA1210D401R |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 17010 Pieces |
Unit Price: | Quote by Email |
Description: | LC EMI Filter 2nd Order Low Pass 2 Channel 100mA 0504 (1210 Metric), Array, 6 PC Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MEA1210D401R Datasheet |
Internal Part Number | 898-MEA1210D401R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MEA Series | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | TDK Corporation | |
Series | MEA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 2nd | |
Technology | LC | |
Number of Channels | 2 | |
Center / Cutoff Frequency | 400MHz (Cutoff) | |
Attenuation Value | 20dB @ 900MHz ~ 2GHz | |
Resistance - Channel (Ohms) | - | |
Current | 100mA | |
Values | - | |
ESD Protection | No | |
Operating Temperature | -40°C ~ 85°C | |
Applications | Data Lines for Mobile Devices | |
Voltage - Rated | 10V | |
Mounting Type | Surface Mount | |

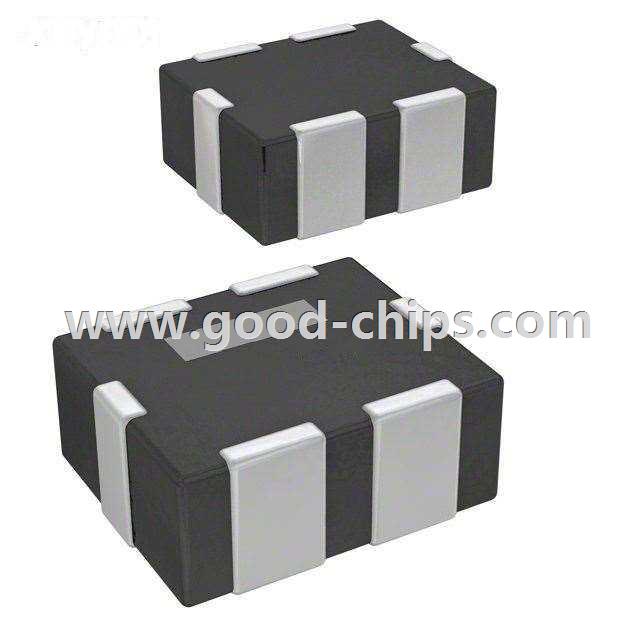

Package / Case | 0504 (1210 Metric), Array, 6 PC Pad | |
Size / Dimension | 0.047" L x 0.039" W (1.20mm x 1.00mm) | |
Height | 0.024" (0.60mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MEA1210D401R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MEA1210D401R is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MEA1210D401R is new and unused, you can buy MEA1210D401R TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MEA1210D401R.
