| Manufacturer Part Number: | MED-EKG |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

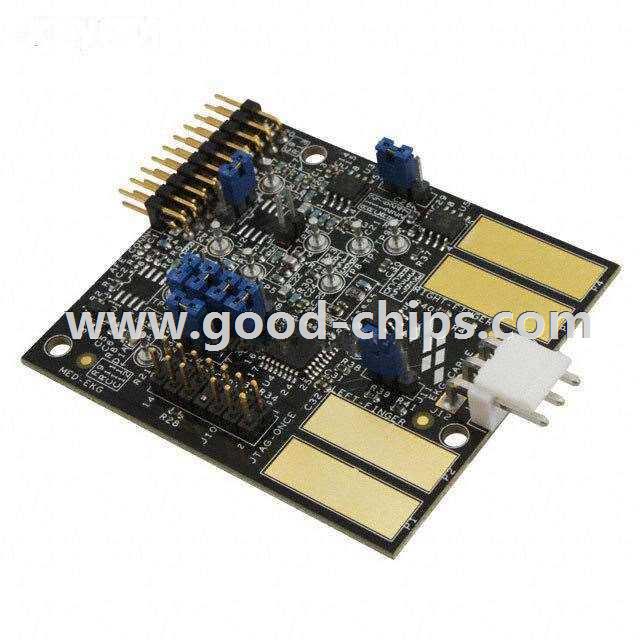

| Description: | MC56F8257 ColdFire® Medical, Electrocardiogram (EKG/ECG) Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MED-EKG Datasheet |
| Internal Part Number | 898-MED-EKG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Freescale Tower Overview - Another Geek Moment Freescale Tower Labs 1 & 2 - Another Geek Moment | |
| Design Resources | MED-EKG Schematic Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | ColdFire® | |
| Part Status | Obsolete | |
| Sensor Type | Medical, Electrocardiogram (EKG/ECG) | |
| Sensing Range | - | |
| Interface | JTAG | |
| Sensitivity | - | |
| Voltage - Supply | 3.3V | |
| Embedded | Yes, DSC | |
| Supplied Contents | Board | |
| Utilized IC / Part | MC56F8257 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MED-EKG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MED-EKG is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MED-EKG is new and unused, you can buy MED-EKG NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MED-EKG.
