| Manufacturer Part Number: | MG12105S-BA1MM |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9045 Pieces |
| Unit Price: | Quote by Email |

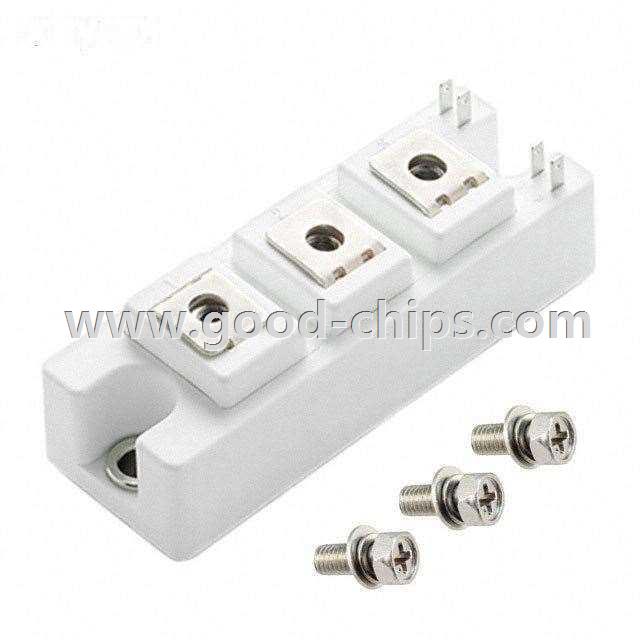

| Description: | IGBT Module Half Bridge 1200V 150A 690W Chassis Mount S3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MG12105S-BA1MM Datasheet |
| Internal Part Number | 898-MG12105S-BA1MM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Littelfuse - IGBT and Rectifier Diode Power Modules MG and MD Series | |
| Online Catalog | MG12105S Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Littelfuse Inc. | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | - | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 150A | |
| Power - Max | 690W | |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 100A (Typ) | |
| Current - Collector Cutoff (Max) | 500µA | |
| Input Capacitance (Cies) @ Vce | 7.43nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | S-3 Module | |
| Supplier Device Package | S3 | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MG12105S-BA1MM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MG12105S-BA1MM is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MG12105S-BA1MM is new and unused, you can buy MG12105S-BA1MM Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MG12105S-BA1MM.
