| Manufacturer Part Number: | MK22FN1M0AVMC12 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9303 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM® Cortex®-M4 Kinetis K20 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 121-MAPBGA (8x8) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MK22FN1M0AVMC12 Datasheet |
| Internal Part Number | 898-MK22FN1M0AVMC12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | Datasheet/Manual/Errata Update 02/Mar/2015 | |
| PCN Assembly/Origin | Site Chg 09/Dec/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Kinetis K20 Series | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Freescale Semiconductor - NXP | |
| Series | Kinetis K20 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | ARM® Cortex®-M4 | |
| Core Size | 32-Bit | |
| Speed | 120MHz | |
| Connectivity | CAN, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG | |
| Peripherals | DMA, I²S, LVD, POR, PWM, WDT | |
| Number of I/O | 64 | |
| Program Memory Size | 1MB (1M x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 128K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.71 V ~ 3.6 V | |
| Data Converters | A/D 38x16b, D/A 2x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

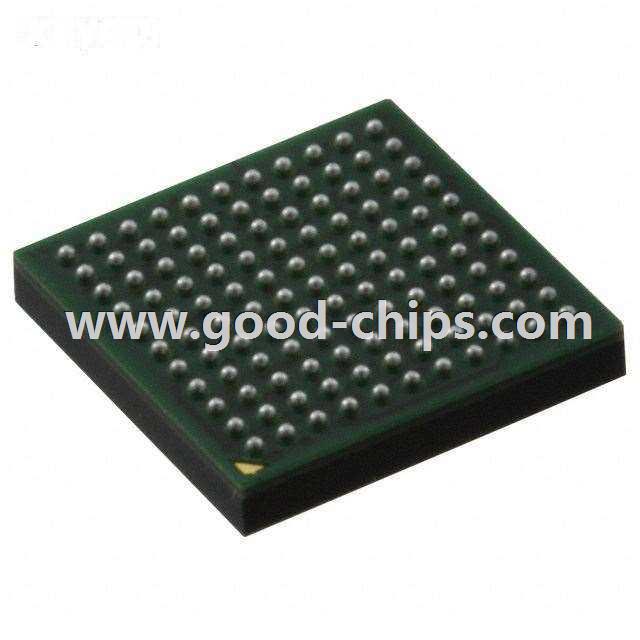

| Package / Case | 121-LFBGA | |
| Supplier Device Package | 121-MAPBGA (8x8) | |
| Standard Package | 348 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MK22FN1M0AVMC12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MK22FN1M0AVMC12 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MK22FN1M0AVMC12 is new and unused, you can buy MK22FN1M0AVMC12 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MK22FN1M0AVMC12.
