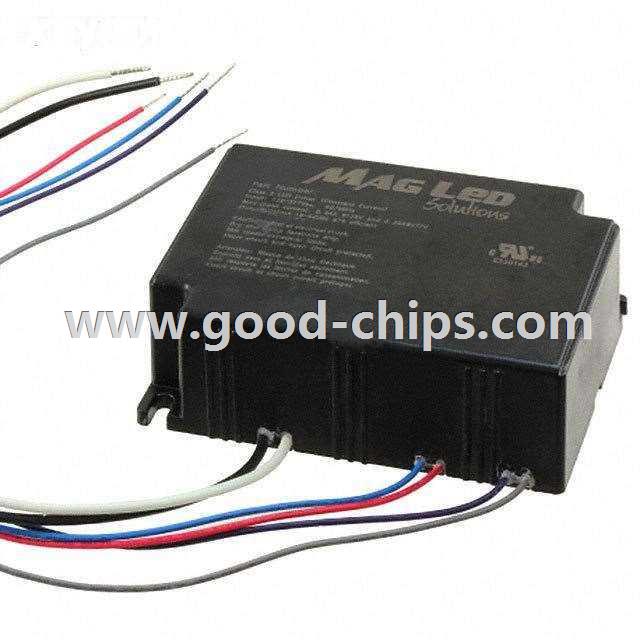

| Manufacturer Part Number: | ML-B40-UVQ-700T |
|---|---|
| Manufacturer: | Mag-LED Solutions |
| Product Category: | LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 700mA 19 ~ 59 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ML-B40-UVQ-700T Datasheet |
| Internal Part Number | 898-ML-B40-UVQ-700T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | ML-B40 | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Mag-LED Solutions | |
| Series | - | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 120VAC | |
| Voltage - Input (Max) | 277VAC | |
| Voltage - Output | 19 ~ 59 V | |
| Current - Output (Max) | 700mA | |
| Power (Watts) | 40W | |
| Voltage - Isolation | 2kV (2000V) | |
| Dimming | Analog | |
| Features | OCP, OVP, SCP | |
| Ratings | IP20 | |
| Operating Temperature | -30°C ~ 60°C | |
| Efficiency | 87% | |
| Termination Style | Wire Leads | |
| Size / Dimension | 3.76" L x 2.81" W x 1.26" H (95.5mm x 71.4mm x 32.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | cULus | |
| Weight | 0.001 KG | |
| Standard Package | 1,600 | |
| Application | Email for details | |
| Replacement Part | ML-B40-UVQ-700T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ML-B40-UVQ-700T is in stock for immediate shipping now. We are the distributor of Mag-LED Solutions all series components. The condition of ML-B40-UVQ-700T is new and unused, you can buy ML-B40-UVQ-700T Mag-LED Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ML-B40-UVQ-700T.
