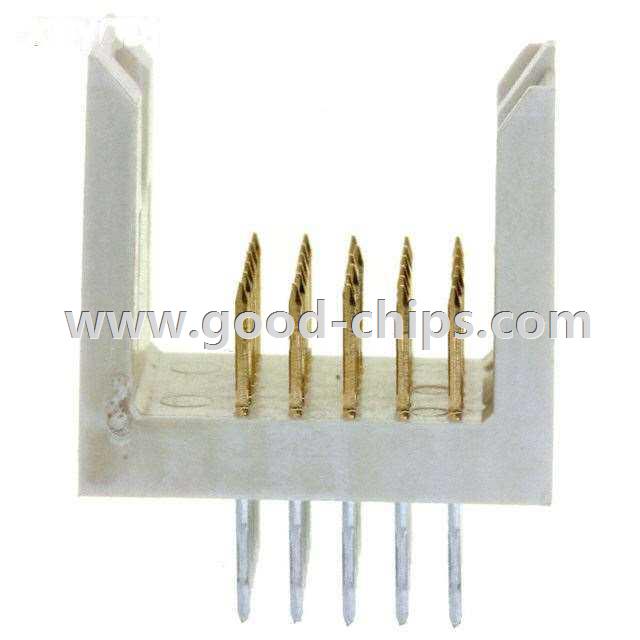

Manufacturer Part Number: | MP2-H030-51P1-S-KR |
---|---|
Manufacturer: | 3M |
Product Category: | Backplane Connectors - Specialized |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONN HEADER VERT 5R0W 30POS P-F |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MP2-H030-51P1-S-KR Datasheet |
Internal Part Number | 898-MP2-H030-51P1-S-KR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | MP2-H030-51P1-S-KR.igs MP2-H030-51P1-X-XX.x_t MP2-H030-51P1-S-KR.stp | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Specialized | |
Manufacturer | 3M | |
Series | MetPak™ MP2 | |
Packaging | Tube | |
Part Status | Active | |
Connector Usage | Backplane | |
Connector Type | Header, Male Pins | |
Connector Style | Futurebus+® | |
Number of Positions | 30 | |
Number of Positions Loaded | All | |
Pitch | 0.079" (2.00mm) | |
Number of Rows | 5 | |
Number of Columns | - | |
Mounting Type | Through Hole | |
Termination | Press-Fit | |
Contact Layout, Typical | - | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Color | Beige | |
Current Rating | 1.5A | |
Material Flammability Rating | UL94 V-0 | |
Operating Temperature | -55°C ~ 125°C | |
Voltage Rating | - | |
Standard Package | 840 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MP2-H030-51P1-S-KR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MP2-H030-51P1-S-KR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MP2-H030-51P1-S-KR is new and unused, you can buy MP2-H030-51P1-S-KR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP2-H030-51P1-S-KR.
