Manufacturer Part Number: | MP28257DD-LF-P |
---|---|
Manufacturer: | Monolithic Power Systems Inc. |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 0.815V 1 Output 4A 12-TFQFN, Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MP28257DD-LF-P Datasheet |
Internal Part Number | 898-MP28257DD-LF-P | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS/Lead Free Policy | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Monolithic Power Systems Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.2V | |
Voltage - Input (Max) | 20V | |
Voltage - Output (Min/Fixed) | 0.815V | |
Voltage - Output (Max) | 13V | |
Current - Output | 4A | |
Frequency - Switching | - | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |

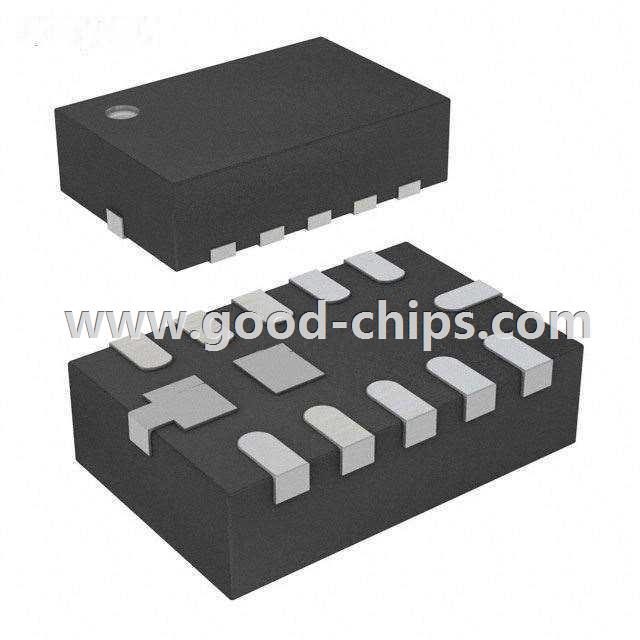

Package / Case | 12-TFQFN, Exposed Pad | |
Supplier Device Package | 12-QFN (2x3) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MP28257DD-LF-P | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MP28257DD-LF-P is in stock for immediate shipping now. We are the distributor of Monolithic Power Systems Inc. all series components. The condition of MP28257DD-LF-P is new and unused, you can buy MP28257DD-LF-P Monolithic Power Systems Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MP28257DD-LF-P.
