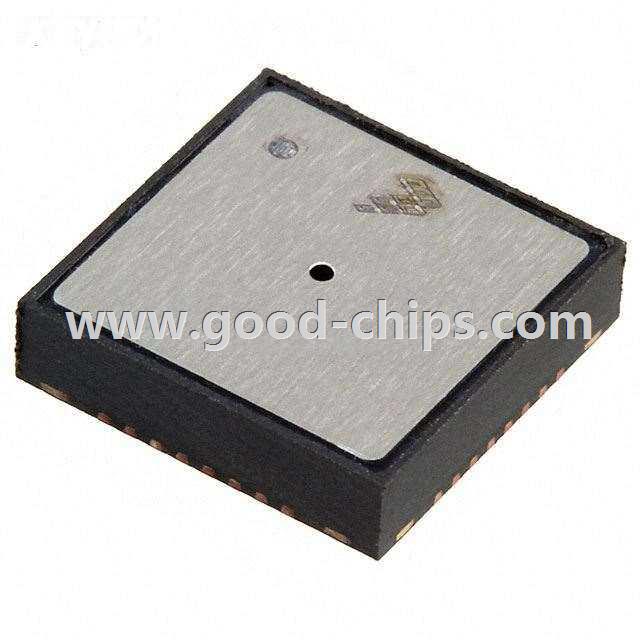

Manufacturer Part Number: | MPXY8600DK6T1 |
---|---|
Manufacturer: | NXP Semiconductors |
Product Category: | RF Transmitters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transmitter FSK, OOK 315MHz, 434MHz PCB, Surface Mount Antenna 32-QFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPXY8600DK6T1 Datasheet |
Internal Part Number | 898-MPXY8600DK6T1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector IoT Product Selector | |
PCN Obsolescence/ EOL | Multiple Devices 15/Sep/2014 | |
PCN Assembly/Origin | Test Process 29C Elimination 20/Mar/2014 MPXY8600 Test Process Update 03/Nov/2014 Burn In Reduction 23/Jan/2015 Assembly Site Add 05/Aug/2015 | |
PCN Packaging | Reel Color Change 24/Apr/2014 | |
Category | RF/IF and RFID | |
Family | RF Transmitters | |
Manufacturer | Freescale Semiconductor - NXP | |
Series | - | |
Packaging | Cut Tape (CT) | |
Part Status | Obsolete | |
Frequency | 315MHz, 434MHz | |
Applications | TPM (Tire Pressure Monitor) | |
Modulation or Protocol | FSK, OOK | |
Data Rate (Max) | - | |
Power - Output | - | |
Current - Transmitting | - | |
Data Interface | PCB, Surface Mount | |
Antenna Connector | PCB, Surface Mount | |
Memory Size | 8kB Flash, 512B SRAM | |
Features | - | |
Voltage - Supply | 2.3 V ~ 3.6 V | |
Operating Temperature | -40°C ~ 125°C | |
Package / Case | 32-QFN Exposed Pad | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPXY8600DK6T1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPXY8600DK6T1 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of MPXY8600DK6T1 is new and unused, you can buy MPXY8600DK6T1 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPXY8600DK6T1.
