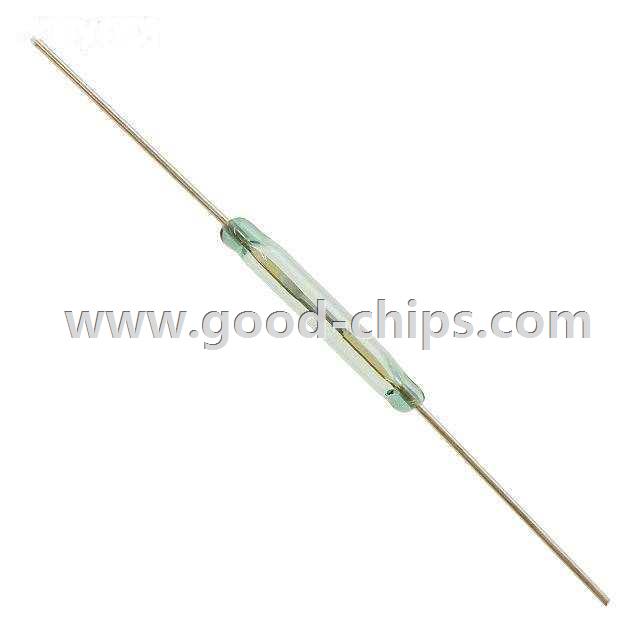

Manufacturer Part Number: | MRPR-3-17-23 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Magnetic, Reed Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Glass Body Reed Switch SPST-NO 17 ~ 23AT Operate Range 50W 1.1A (AC), 1.5A (DC) 140V Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MRPR-3-17-23 Datasheet |
Internal Part Number | 898-MRPR-3-17-23 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
RoHS Information | Cert of Compliance | |
Category | Switches | |
Family | Magnetic, Reed Switches | |
Manufacturer | Littelfuse Inc. | |
Series | MRPR-3 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Glass Body | |
Circuit | SPST-NO | |
Operate Range | 17 ~ 23AT | |
Release Range | - | |
Current - Switching | 1.1A (AC), 1.5A (DC) | |
Voltage - Switching AC | 140V | |
Voltage - Switching DC | 200V | |
Power - Rated | 50W | |
Operate Time | 0.75ms | |
Release Time | 0.3ms | |
Mounting Type | Through Hole | |
Termination Style | Axial | |
Length - Overall | 2.230" (56.64mm) | |
Size - Body | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | |
Height Above Board | - | |
Operating Temperature | -40°C ~ 125°C | |
Capacitance | 0.20pF | |
Current - Carry | 3A (DC) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MRPR-3-17-23 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MRPR-3-17-23 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MRPR-3-17-23 is new and unused, you can buy MRPR-3-17-23 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MRPR-3-17-23.
