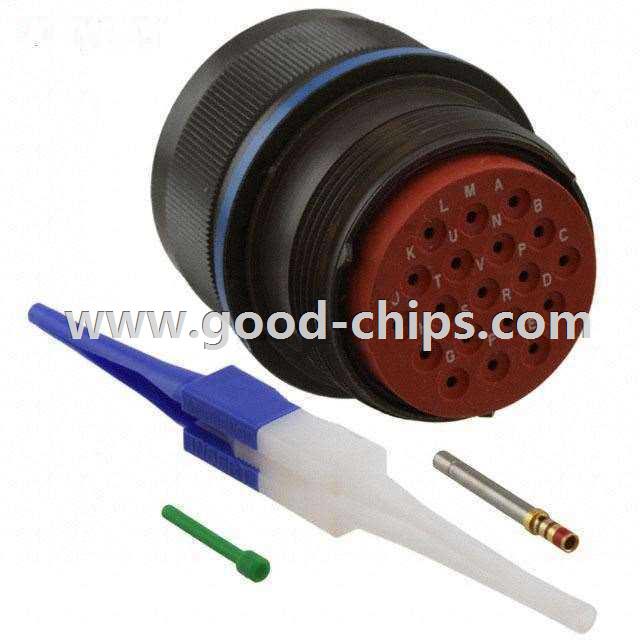

| Manufacturer Part Number: | MS3456W22-14S |
|---|---|
| Manufacturer: | Amphenol Aerospace Operations |
| Product Category: | Circular Connectors |
| Available Quantity: | 9056 Pieces |
| Unit Price: | Quote by Email |
| Description: | 19 Position Circular Connector Plug, Female Sockets Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MS3456W22-14S Datasheet |
| Internal Part Number | 898-MS3456W22-14S | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MIL-DTL-5015 Matrix Connectors | |
| Online Catalog | Military, MIL-DTL-5015 | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Amphenol Aerospace Operations | |
| Series | Military, MIL-DTL-5015 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug, Female Sockets | |
| Number of Positions | 19 | |
| Shell Size - Insert | 22-14 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Fastening Type | Threaded | |
| Orientation | N (Normal) | |
| Ingress Protection | Fluid Resistant | |
| Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated | |
| Contact Finish | - | |
| Features | - | |
| Contact Finish Thickness | - | |
| Current Rating | 13A | |
| Voltage - Rated | - | |
| Operating Temperature | -55°C ~ 175°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MS3456W22-14S | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MS3456W22-14S is in stock for immediate shipping now. We are the distributor of Amphenol Aerospace Operations all series components. The condition of MS3456W22-14S is new and unused, you can buy MS3456W22-14S Amphenol Aerospace Operations with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MS3456W22-14S.
