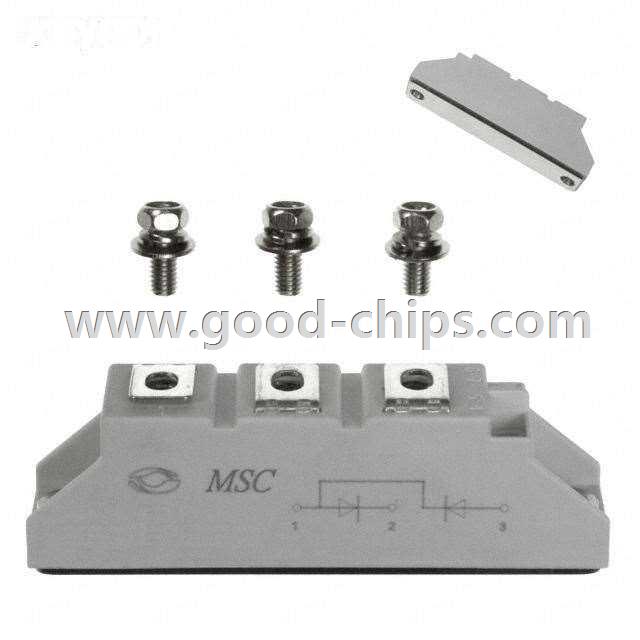

| Manufacturer Part Number: | MSAD100-16 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Anode Standard 1600V (1.6kV) 100A Chassis Mount D1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSAD100-16 Datasheet |
| Internal Part Number | 898-MSAD100-16 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1600V (1.6kV) | |
| Current - Average Rectified (Io) (per Diode) | 100A | |
| Voltage - Forward (Vf) (Max) @ If | 1.35V @ 300A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 5mA @ 1600V | |
| Mounting Type | Chassis Mount | |
| Package / Case | D1 | |
| Supplier Device Package | D1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSAD100-16 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSAD100-16 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MSAD100-16 is new and unused, you can buy MSAD100-16 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSAD100-16.
