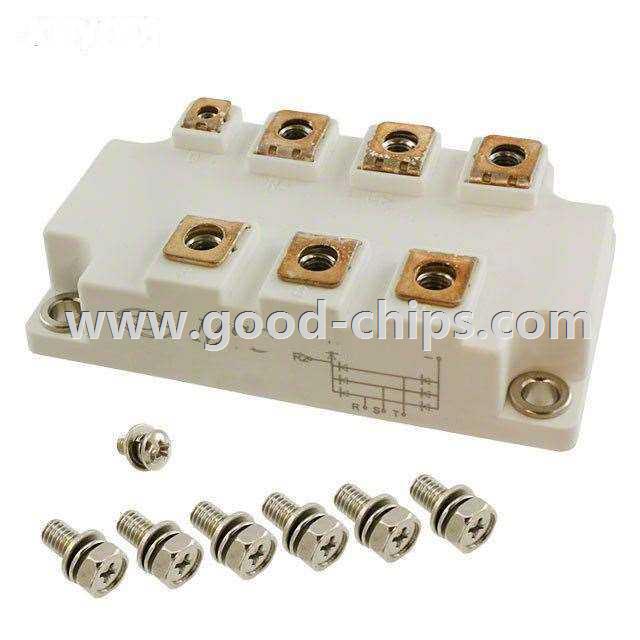

| Manufacturer Part Number: | MSDT150-16 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9014 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 1600V Bridge, 3-Phase - SCRs/Diodes Chassis Mount M5 Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSDT150-16 Datasheet |
| Internal Part Number | 898-MSDT150-16 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1 | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Bridge, 3-Phase - SCRs/Diodes | |
| Number of SCRs, Diodes | 1 SCR, 6 Diodes | |
| Voltage - Off State | 1600V | |
| Current - Gate Trigger (Igt) (Max) | 150mA | |
| Current - On State (It (AV)) (Max) | 150A | |
| Current - On State (It (RMS)) (Max) | - | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1500A @ 50Hz | |
| Current - Hold (Ih) (Max) | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | M5 Module | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSDT150-16 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSDT150-16 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MSDT150-16 is new and unused, you can buy MSDT150-16 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSDT150-16.
