| Manufacturer Part Number: | MSL2162DQ-R |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 16 Output Linear PWM Dimming 64-TQFN (9x9) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSL2162DQ-R Datasheet |
| Internal Part Number | 898-MSL2162DQ-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Atmel | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | No | |
| Number of Outputs | 16 | |
| Voltage - Supply (Min) | 10.8V | |
| Voltage - Supply (Max) | 13.2V | |
| Voltage - Output | - | |
| Current - Output / Channel | - | |
| Frequency | 20MHz | |
| Dimming | PWM | |
| Applications | Backlight, Lighting | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Mounting Type | Surface Mount | |

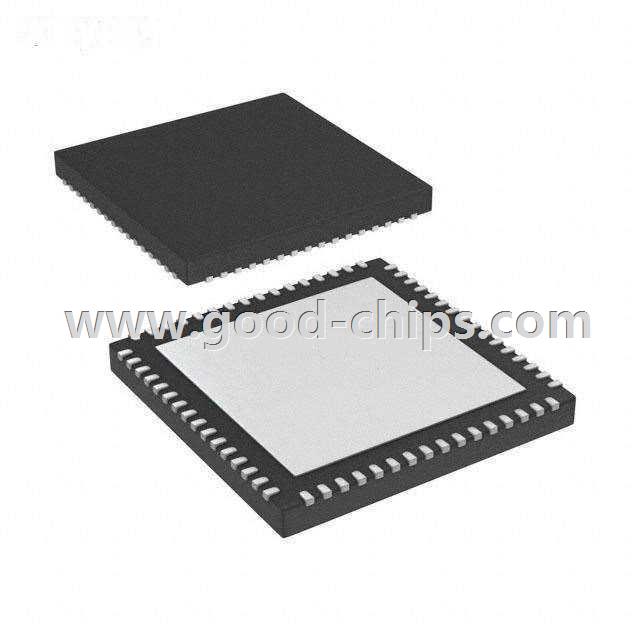

| Package / Case | 64-VFQFN Exposed Pad | |
| Supplier Device Package | 64-TQFN (9x9) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSL2162DQ-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSL2162DQ-R is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of MSL2162DQ-R is new and unused, you can buy MSL2162DQ-R Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSL2162DQ-R.
