| Manufacturer Part Number: | MSMCG7.5A |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9210 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 7.5VWM 12.9VC DO215AB |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSMCG7.5A Datasheet |
| Internal Part Number | 898-MSMCG7.5A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | Military, MIL-PRF-19500 Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 7.5V | |
| Voltage - Breakdown (Min) | 8.33V | |
| Voltage - Clamping (Max) @ Ipp | 12.9V | |
| Current - Peak Pulse (10/1000µs) | 116.3A | |
| Power - Peak Pulse | 1500W (1.5kW) | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -65°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

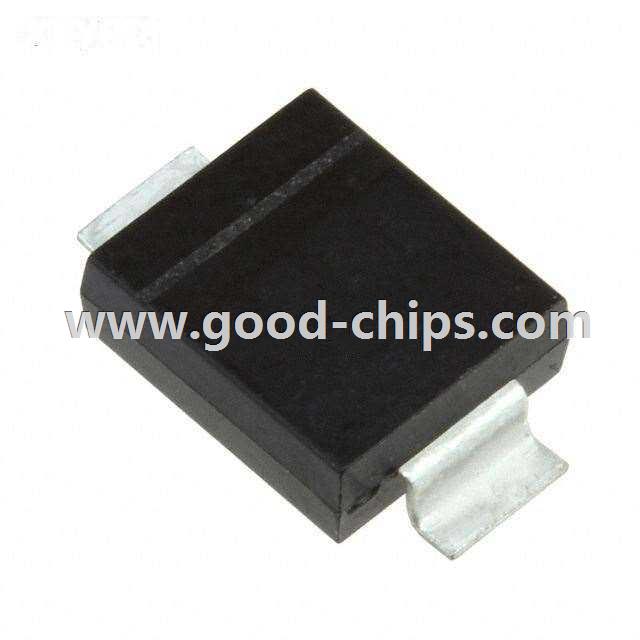

| Package / Case | DO-215AB, SMC Gull Wing | |
| Supplier Device Package | SMCG (DO-215AB) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSMCG7.5A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSMCG7.5A is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MSMCG7.5A is new and unused, you can buy MSMCG7.5A Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSMCG7.5A.
