| Manufacturer Part Number: | MSP430F5419AIZQWR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 11510 Pieces |
| Unit Price: | Quote by Email |

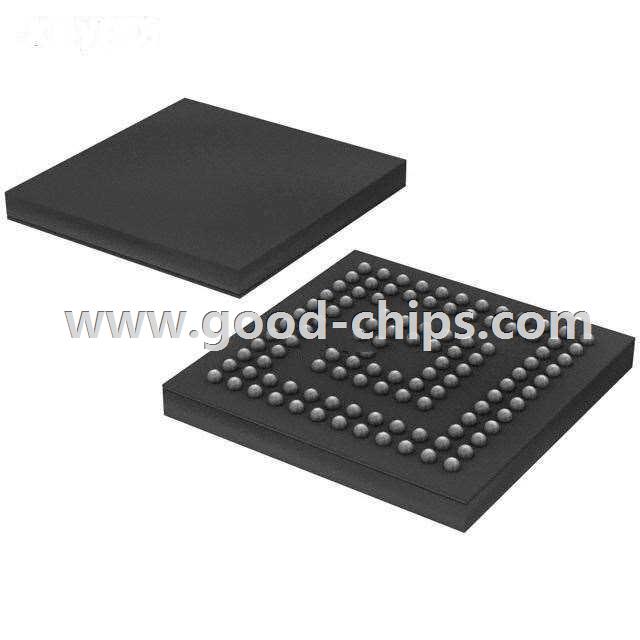

| Description: | CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 113-BGA Microstar Junior (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSP430F5419AIZQWR Datasheet |
| Internal Part Number | 898-MSP430F5419AIZQWR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | The Ultra-Low Power MSP430 MSP430 Overview MSP430 Design Tools MSP430 Peripherals Portable Medical Solutions with MSP430 MSP430 for Utility Metering Solutions MSP430: How to JTAG MSP430, How To Use the Clock System Grace Software Graphical User Interface MCU Overview Driver Library MSP430Ware Overview SYS/BIOS: MSP430 Support Microcontrollers: SYS/BIOS: Introduction to SYS/BIOS Threading Intro to Timers and Clocks Microcontrollers: SYS/BIOS: Introduction to Real-Time Operating Systems and SYS/BIOS Communication Solutions for Industrial Automation | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | MSP430F54yy/F6yy Datasheet Update 26/Aug/2013 | |
| Manufacturer Product Page | MSP430F5419AIZQWR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MSP430F5418A, MSP430F5419A, MSP430F5435A, MSP430F5436A, MSP430F5437A, MSP430F5438A | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Texas Instruments | |
| Series | MSP430F5xx | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | CPUXV2 | |
| Core Size | 16-Bit | |
| Speed | 25MHz | |
| Connectivity | I²C, IrDA, LIN, SCI, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | |
| Number of I/O | 87 | |
| Program Memory Size | 128KB (128K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 16K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | |
| Data Converters | A/D 16x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 113-VFBGA | |
| Supplier Device Package | 113-BGA Microstar Junior (7x7) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSP430F5419AIZQWR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSP430F5419AIZQWR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of MSP430F5419AIZQWR is new and unused, you can buy MSP430F5419AIZQWR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSP430F5419AIZQWR.
