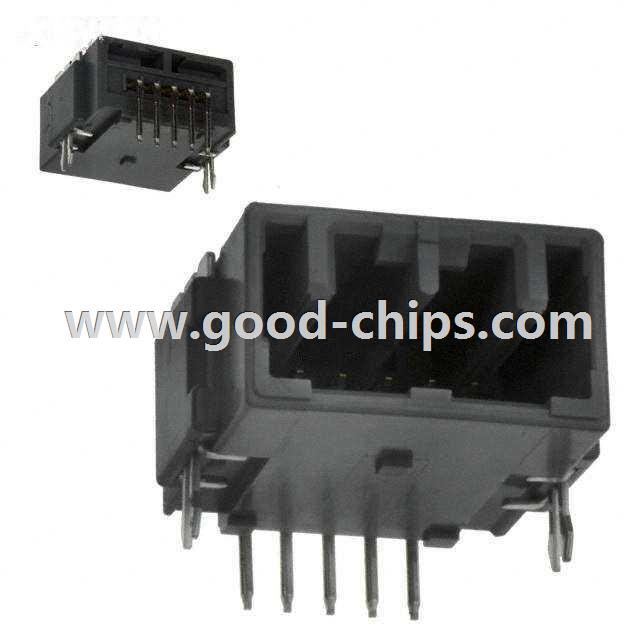

| Manufacturer Part Number: | MX34005NF1 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9877 Pieces |
| Unit Price: | Quote by Email |
| Description: | 5 Positions Header, Shrouded Connector 0.087" (2.20mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MX34005NF1 Datasheet |
| Internal Part Number | 898-MX34005NF1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | MX34 Series Board to Cable Transportation | |
| Online Catalog | MX34 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | JAE Electronics | |
| Series | MX34 | |
| Packaging | Tube | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 5 | |
| Number of Positions Loaded | All | |
| Pitch | 0.087" (2.20mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.303" (7.70mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Lock | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Gray | |
| Standard Package | 1,575 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MX34005NF1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MX34005NF1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of MX34005NF1 is new and unused, you can buy MX34005NF1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MX34005NF1.
